2000-120 Series
Manufacturer: WAGO Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
2-CONDUCTOR GROUND TERMINAL BLOC
| Part | Stripping Length (Min) | Stripping Length (Max) | Material - Insulation | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Number of Positions | Number of Levels | Termination Style | Type | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Terminal Width | Color | Current - IEC | Voltage - IEC | Voltage - UL | Current - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

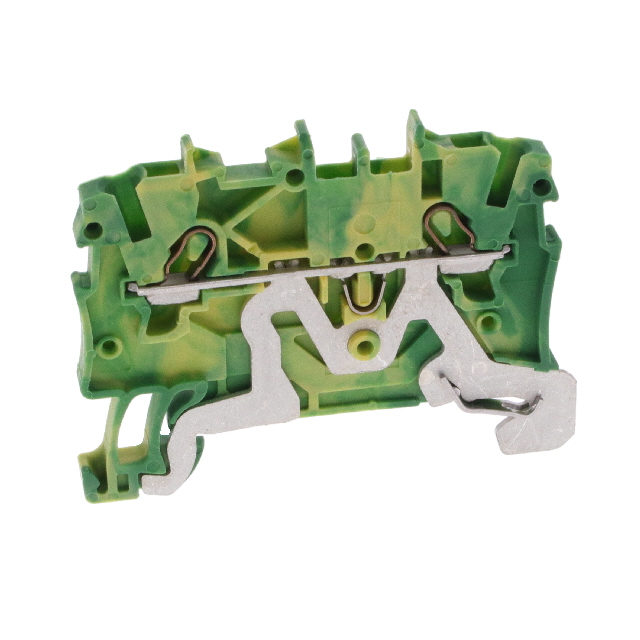

 WAGO Corporation | 9 mm | 11 mm | Nylon 6/6 PA66 Polyamide | 20 AWG | 16 AWG | 2 | 1 | Push In Spring | Earth Ground | 1.5 mm² | 0.5 mm² | 3.5 mm | Green Yellow | ||||

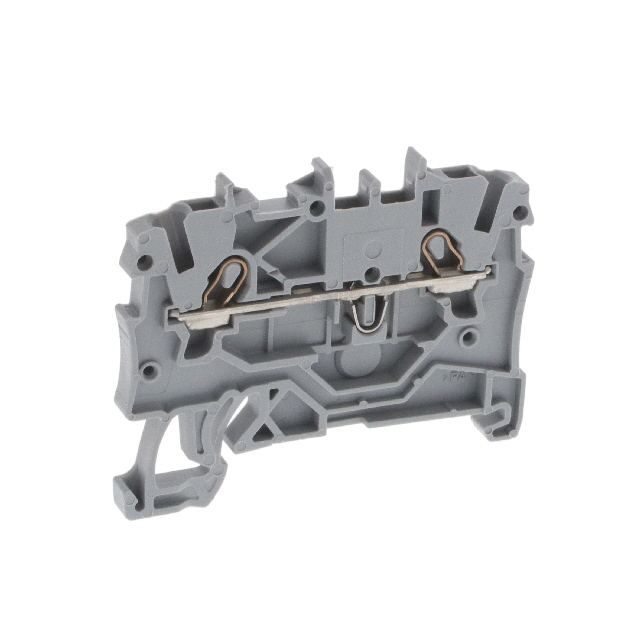

 WAGO Corporation | 9 mm | 11 mm | Nylon 6/6 PA66 Polyamide | 20 AWG | 16 AWG | 2 | 1 | Push In Spring | Feed Through | 1.5 mm² | 0.5 mm² | 3.5 mm | Gray | 17.5 A | 800 V | 600 V | 15 A |
