EDS06 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Body Material	Electrical Life	Length	Length	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Level	Contact Finish	Termination Style	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch	Pitch	Contact Material	Voltage Rating	Number of Positions	Actuator Type	Height Above Board	Height Above Board

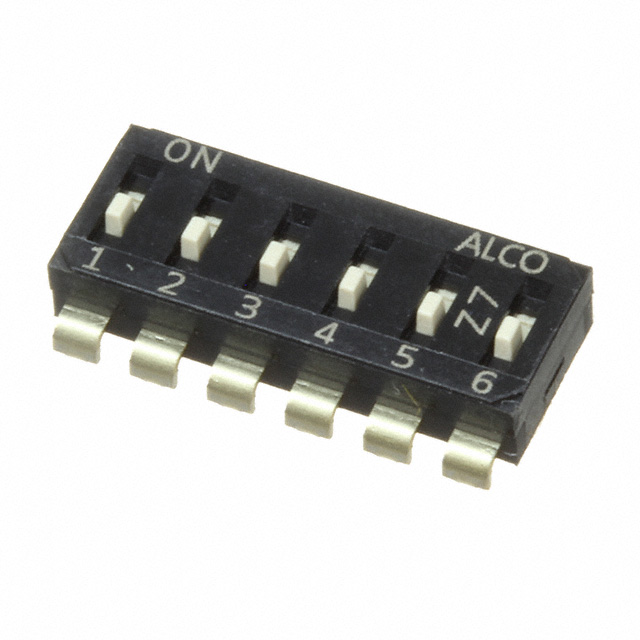

TE Connectivity AMP Connectors EDS06SNNNTU04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	15.14 mm	0.596 in	25 mA	85 °C	-20 ░C	SPST	Raised	Gold	J Lead	3.85 mm	0.152 in	Surface Mount	2.54 mm	0.1 "	Copper Alloy	24 VDC	6	Slide (Standard)
TE Connectivity AMP Connectors EDS06SGRSTU04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	15.14 mm	0.596 in	25 mA	85 °C	-20 ░C	SPST	Flush Recessed	Gold	Gull Wing			Surface Mount	2.54 mm	0.1 "	Copper Alloy	24 VDC	6	Slide (Standard)	3.4 mm	0.134 in
TE Connectivity AMP Connectors EDS06SNNNTR04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	15.14 mm	0.596 in	25 mA	85 °C	-20 ░C	SPST	Raised	Gold	J Lead	3.85 mm	0.152 in	Surface Mount	2.54 mm	0.1 "	Copper Alloy	24 VDC	6	Slide (Standard)
