PRPC022 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 22POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Style	Connector Type	Contact Finish - Mating	Insulation Material	Contact Type	Mounting Type	Material Flammability Rating	Number of Positions	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Number of Rows	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

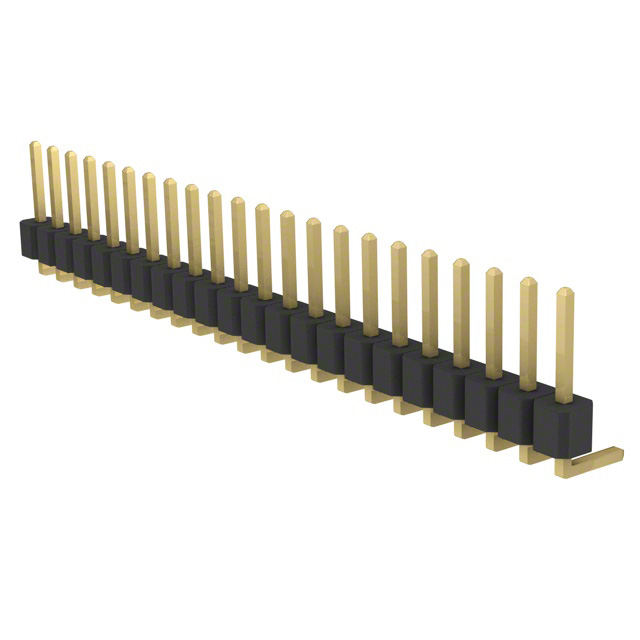

Sullins Connector Solutions PRPC022SBAN-M71RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Right Angle Through Hole	UL94 V-0	22	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.098 "	2.5 mm	1	All	-40 C	105 ░C
Sullins Connector Solutions PRPC022DAAN-RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	44	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.098 "	2.5 mm		All	-40 C	105 ░C	0.448 in	11.39 mm	0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC022SFAN-RC	Flash	0.318 in	8.08 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	22	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.098 "	2.5 mm	1	All	-40 C	105 ░C						13.63 mm	0.537 in

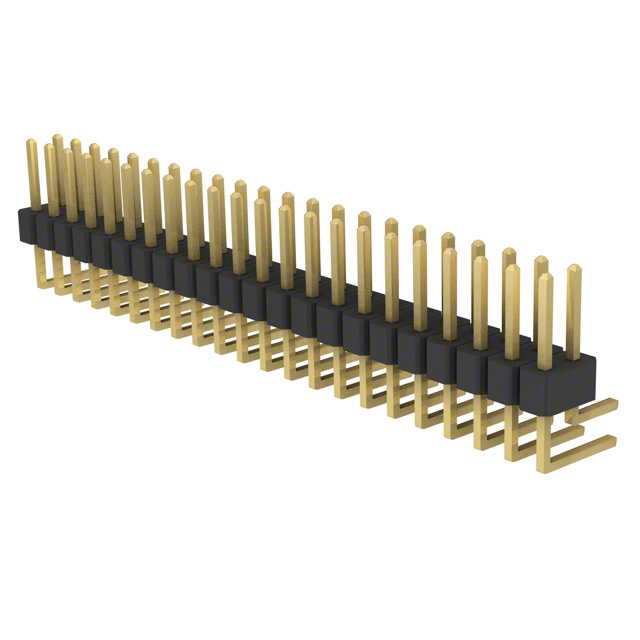

Sullins Connector Solutions PRPC022DBAN-M71RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Right Angle Through Hole	UL94 V-0	44	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.197 "	5 mm		All	-40 C	105 ░C			0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC022DABN-RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	44	Brass	Push-Pull	Flash	5.84 mm	0.23 "	Gold	Square	0.098 "	2.5 mm		All	-40 C	105 ░C	0.558 in	14.18 mm	0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC022SAAN-RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	22	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.098 "	2.5 mm	1	All	-40 C	105 ░C	0.448 in	11.39 mm
Sullins Connector Solutions PRPC022DFAN-RC	Flash	0.318 in	8.08 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	44	Brass	Push-Pull	Flash	3.05 mm	0.12 in	Gold	Square	0.098 "	2.5 mm		All	-40 C	105 ░C			0.1 in	2.54 mm	2	13.63 mm	0.537 in

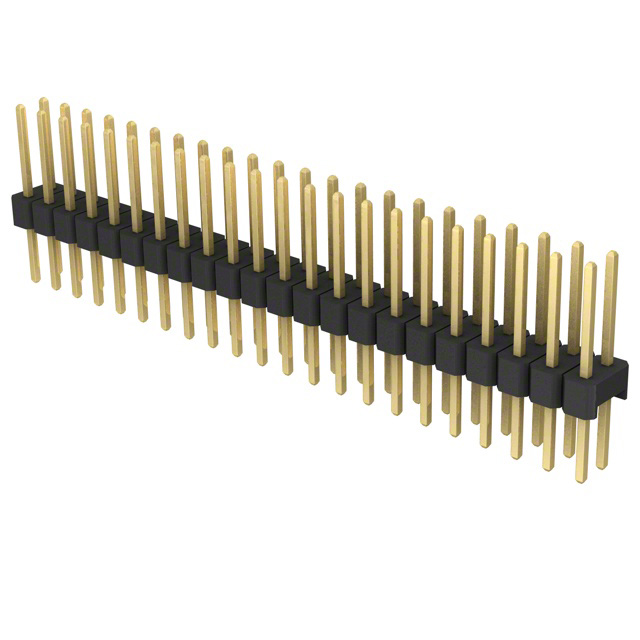

Sullins Connector Solutions PRPC022DFBN-RC	Flash	0.318 in	8.08 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	44	Brass	Push-Pull	Flash	5.58 mm	0.22 in	Gold	Square	0.098 "	2.5 mm		All	-40 C	105 ░C		0.637 in	0.1 in	2.54 mm	2			16.17 mm

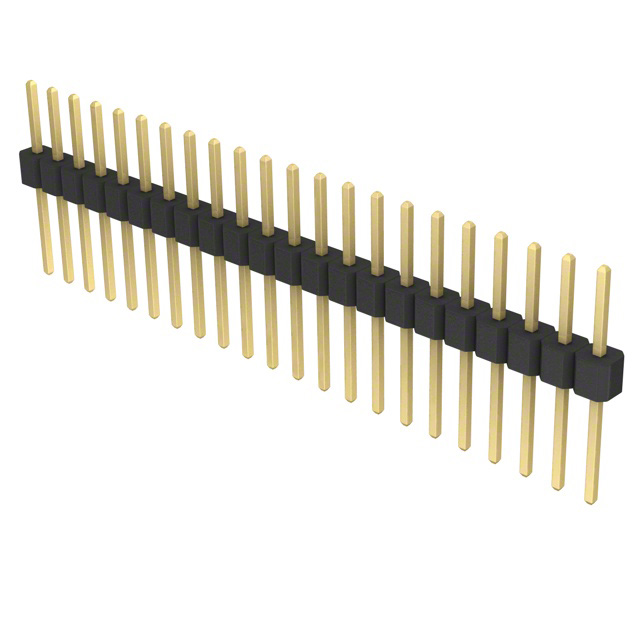

Sullins Connector Solutions PRPC022SACN-RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Through Hole	UL94 V-0	22	Brass	Push-Pull	Flash	8.13 mm	0.32 in	Gold	Square	0.098 "	2.5 mm	1	All	-40 C	105 ░C						16.47 mm	0.648 in

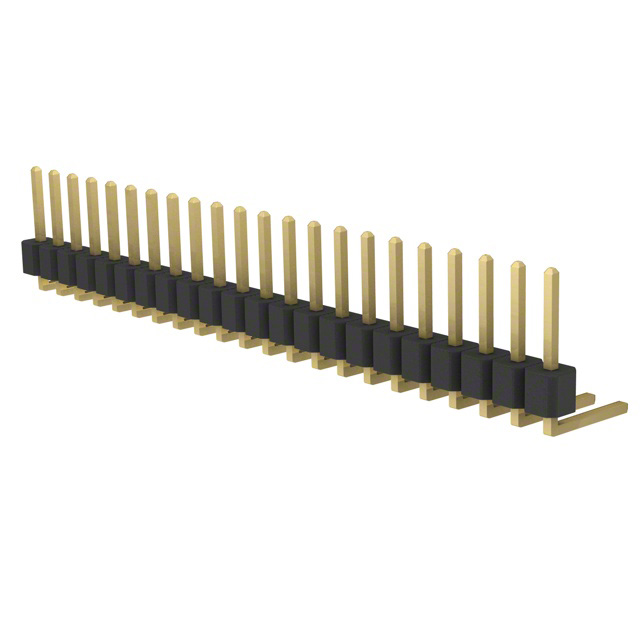

Sullins Connector Solutions PRPC022SBBN-M71RC	Flash	0.23 in	5.84 mm	Unshrouded	Solder	0.1 "	2.54 mm	3 A	Black	Board to Board Cable	Header Breakaway	Gold	Polybutylene Terephthalate (PBT)	Male Pin	Right Angle Through Hole	UL94 V-0	22	Brass	Push-Pull	Flash	5.58 mm	0.22 in	Gold	Square	0.098 "	2.5 mm	1	All	-40 C	105 ░C
