OD4056 Series
Manufacturer: ORION FANS
Beta
⌘K

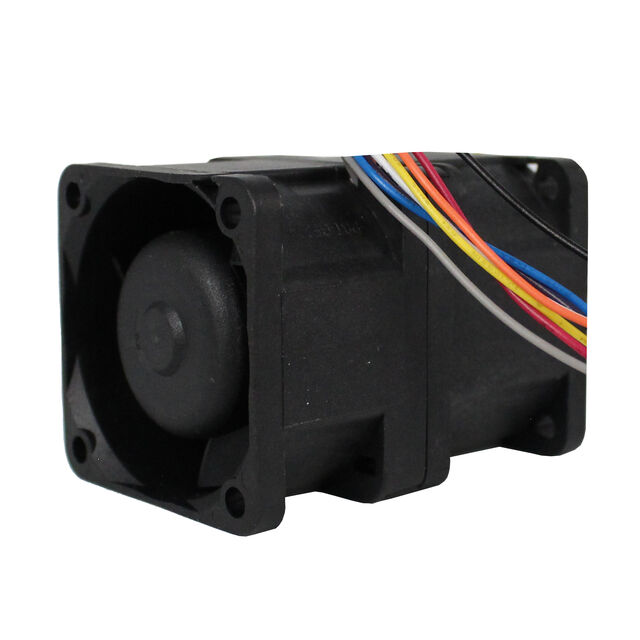

DC FANS DC FAN, 40X40X56MM, 12VDC, OPEN COLLECTOR TACHOMETER, PWM
| Part | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Fan Type | Power (Watts) | Bearing Type | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Static Pressure | Static Pressure | Air Flow | Air Flow | Size / Dimension [x] | Size / Dimension [z] | Width [y] | RPM | Termination | Features | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 1.6 A | 70000 Hrs | 8 V | 13.8 VDC | Polybutylene Terephthalate (PBT) | Tubeaxial (Dual) | 19.2 W | Ball | CE cURus TUV UR | 70 °C | -10 °C | 12 VDC | 3.3 in H2O | 822 Pa | 0.896 m³/min | 32 CFM | 40 mm | 40 mm | 56 mm | 21000 RPM | 3 Wire Leads | Auto Restart Speed Sensor (Tach) | 72.5 dB(A) |
