CAB429RF Series
Manufacturer: GCT
Beta
⌘K

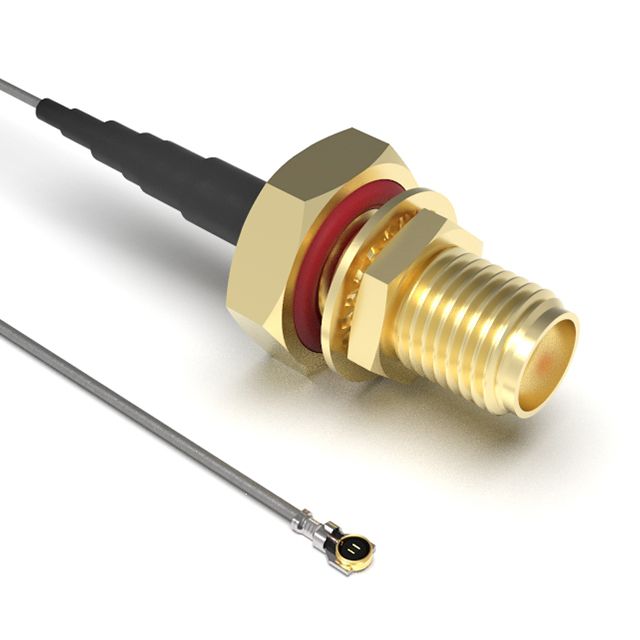

CBL ASSY SMA-MHF5L JCK-PL 7.874"
| Part | Style | Length | Length | 2nd Connector Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector | 2nd Connector | 1st Contact Gender | Frequency - Max [Max] | Overall Impedance | Cable Type | Cable Type [diameter] | Ingress Protection | 1st Connector Mounting Feature | 2nd Contact Gender | Cable Impedance | 1st Connector Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMA to IPEX MHF5L | 200 mm | 7.874 in | Free Hanging (In-Line) | IP Rated Unmated | 85 °C | -40 C | SMA Jack | IPEX MHF5L Plug Right Angle | Female | 6000 MHz | 50 Ohms | Coaxial Cable | 1.13 mm | IP67/IP68 | Bulkhead - Front Side Nut | Female | 50 Ohms | Panel Mount | Gray | |
SMA to I-PEX MHF5L | 200 mm | 7.874 in | Free Hanging (In-Line) | IP Rated Unmated | 85 °C | -40 C | SMA Jack | I-PEX MHF5L Plug Right Angle | Female | 6000 MHz | 50 Ohms | Coaxial Cable | 1.13 mm | IP67/IP68 | Bulkhead - Front Side Nut | Female | 50 Ohms | Panel Mount | Gray |
