3210-26 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER VERT 26POS 1.27MM

Part	Contact Finish Thickness - Mating	Number of Rows [custom]	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Contact Finish - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Mounting Type	Contact Shape	Number of Positions	Style	Material Flammability Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Insulation Height
CNC Tech 3210-26-001-12-00	Flash	2	Solder	All	-40 C	105 ░C	Male Pin	2.4 mm	0.094 in	Brass	Shrouded - 4 Wall	Gold	Header	0.05 in	1.27 mm	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Through Hole	Square	26	Board to Cable/Wire	UL94 V-0	Latch Lock/Eject Hooks	1.27 mm	0.05 in

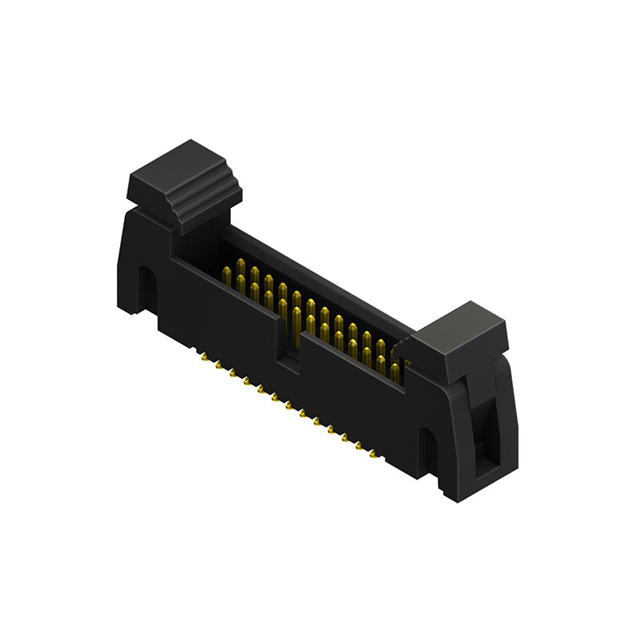

CNC Tech 3210-26-003-12-00	Flash	2	Solder	All	-40 C	105 ░C	Male Pin			Brass	Shrouded - 4 Wall	Gold	Header	0.05 in	1.27 mm	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Surface Mount	Square	26	Board to Cable/Wire	UL94 V-0	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Keying Slot
CNC Tech 3210-26-002-12-00	Flash	2	Solder	All	-40 C	105 ░C	Male Pin	2.4 mm	0.094 in	Brass	Shrouded - 4 Wall	Gold	Header	0.05 in	1.27 mm	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Right Angle Through Hole	Square	26	Board to Cable/Wire	UL94 V-0	Latch Lock/Eject Hooks	1.27 mm	0.05 in		5.6 mm	0.22 in
