56995 Series

Catalog

PELTIER MODULE CP2,31,10,L1,W4.5

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Number of Stages	Current - Max [Max]	Delta Tmax @ Th	Voltage - Max [Max]	Operating Temperature	Resistance	Height [z]

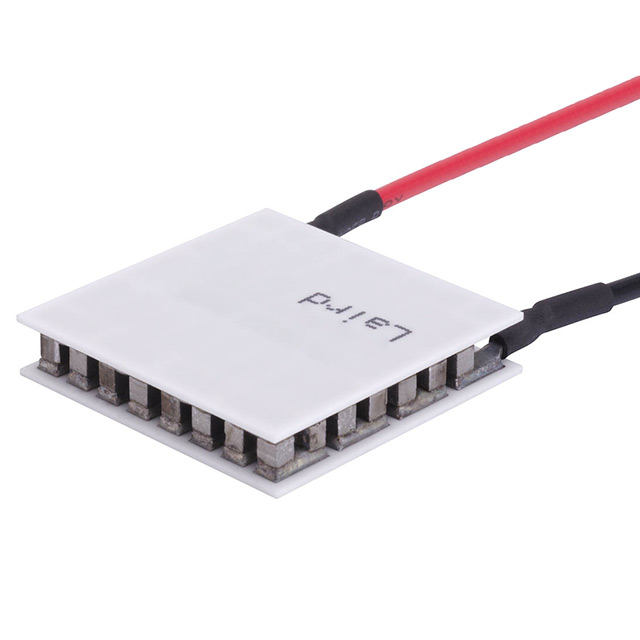

Laird Thermal Systems, Inc. 56995-501	Lead Wires Non-Sealed	29.72 mm	29.72 mm	18.8 W	1	9 A	67 °C	3.8 V	80 °C	350 mOhms	5.59 mm

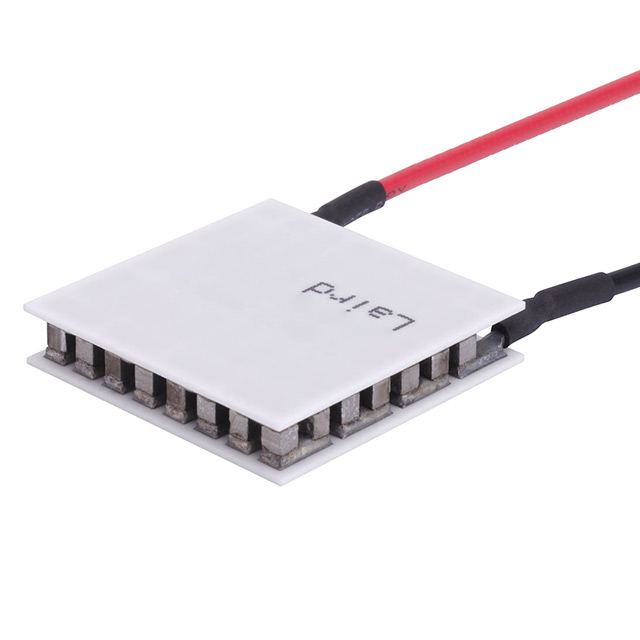

Laird Thermal Systems, Inc. 56995-503	Lead Wires Sealed - Silicone RTV	29.72 mm	29.72 mm	18.8 W	1	9 A	67 °C	3.8 V	80 °C	350 mOhms	5.59 mm
