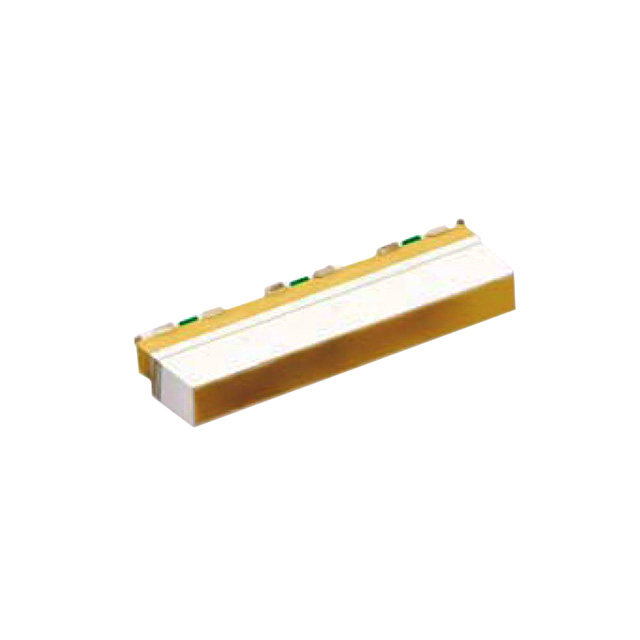

CL-426 Series
Manufacturer: Citizen Finedevice Co Ltd
Beta
⌘K
LED RGB SMD R/A
| Part | Wavelength - Dominant | Height (Max) [z] | Size / Dimension [x] | Size / Dimension [y] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Voltage - Forward (Vf) (Typ) | Color | Configuration | Lens Style | Lens Size [x] | Lens Size [y] | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Citizen Finedevice Co Ltd | 470 nm 530 nm 628 nm | 0.35 mm | 2.8 mm | 0.85 mm | 62 mcd | 120 mcd | 250 mcd | 5 mA | 5 mA | 5 mA | 2 V 2.7 V 2.8 V | Blue Green Red | Common Cathode | Rectangle with Flat Top | 2.8 mm | 0.35 mm | Right Angle Surface Mount | 4-SMD No Lead |
