1N5062 Series

Catalog

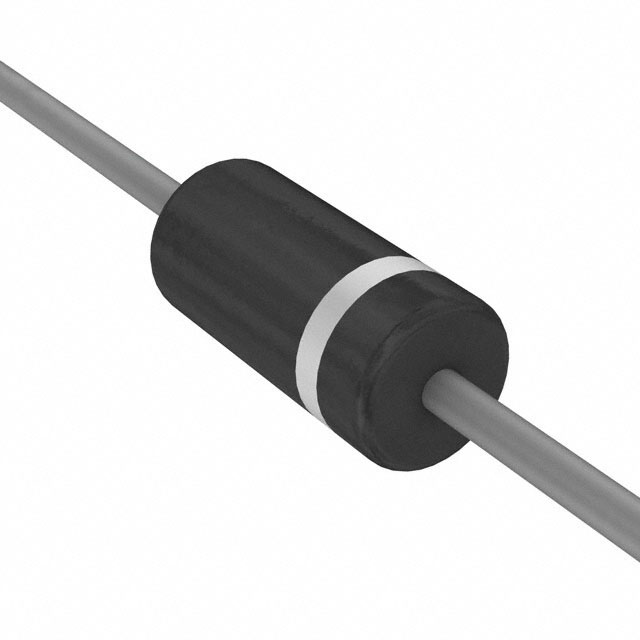

DIODE GEN PURP 800V 1A DO204AC

Part	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]
Vishay General Semiconductor - Diodes Division 1N5062GP-E3/54	Axial DO-15 DO-204AC	Through Hole	1.2 V	15 pF	175 ░C	-65 C	Standard	2 µs	1 A	800 V	200 mA 500 ns	DO-204AC (DO-15)	5 µA
Vishay General Semiconductor - Diodes Division 1N5062GPHE3/54	Axial DO-15 DO-204AC	Through Hole	1.2 V	15 pF	175 ░C	-65 C	Standard	2 µs	1 A	800 V	200 mA 500 ns	DO-204AC (DO-15)	5 µA
Vishay General Semiconductor - Diodes Division 1N5062TR	SOD-57 Axial	Through Hole		40 pF	175 ░C	-55 °C	Avalanche	4 µs	2 A	800 V	200 mA 500 ns	SOD-57	1 µA	1.15 V
Vishay General Semiconductor - Diodes Division 1N5062GP-E3/73	Axial DO-15 DO-204AC	Through Hole	1.2 V	15 pF	175 ░C	-65 C	Standard	2 µs	1 A	800 V	200 mA 500 ns	DO-204AC (DO-15)	5 µA
Vishay General Semiconductor - Diodes Division 1N5062GPHE3/73	Axial DO-15 DO-204AC	Through Hole	1.2 V	15 pF	175 ░C	-65 C	Standard	2 µs	1 A	800 V	200 mA 500 ns	DO-204AC (DO-15)	5 µA
