845-078 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Number of Positions/Bay/Row	Contact Type	Gender	Number of Rows [custom]	Termination	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Card Type	Features

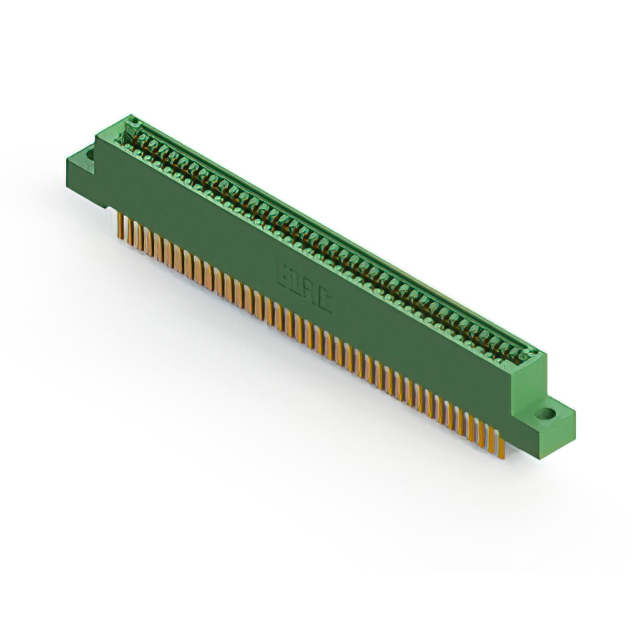

EDAC Inc. 845-078-544-204	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Wire Wrap	Gold	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-520-512	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold	Side Mount Opening Unthreaded	0.128 "	3.25 mm	0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-558-802	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold		0.128 "	3.25 mm	0.25 Ám	10 Áin	78	Right Angle Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge

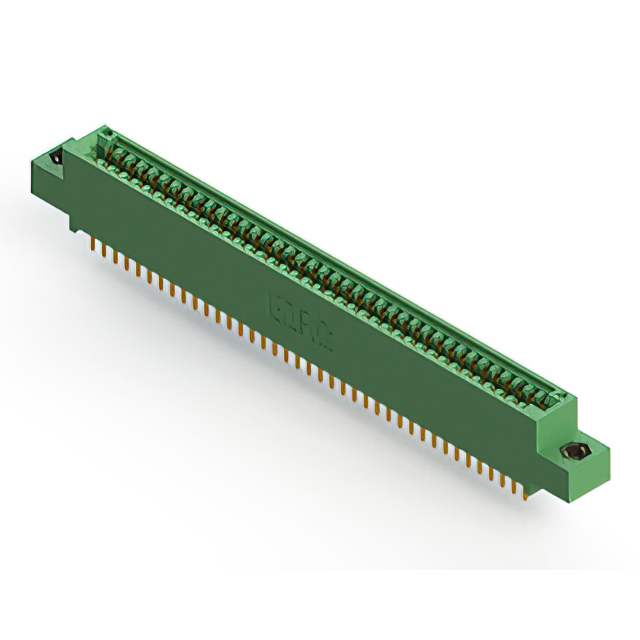

EDAC Inc. 845-078-521-507	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold	M3 Threaded Insert Top Mount Opening			0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-523-803	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-500-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder Eyelet(s)	Gold	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-558-502	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold		0.128 "	3.25 mm	0.25 Ám	10 Áin	78	Right Angle Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge

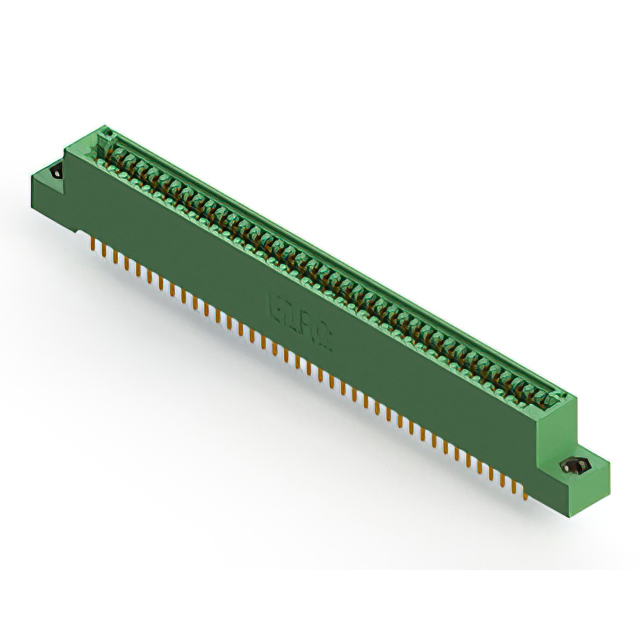

EDAC Inc. 845-078-521-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge

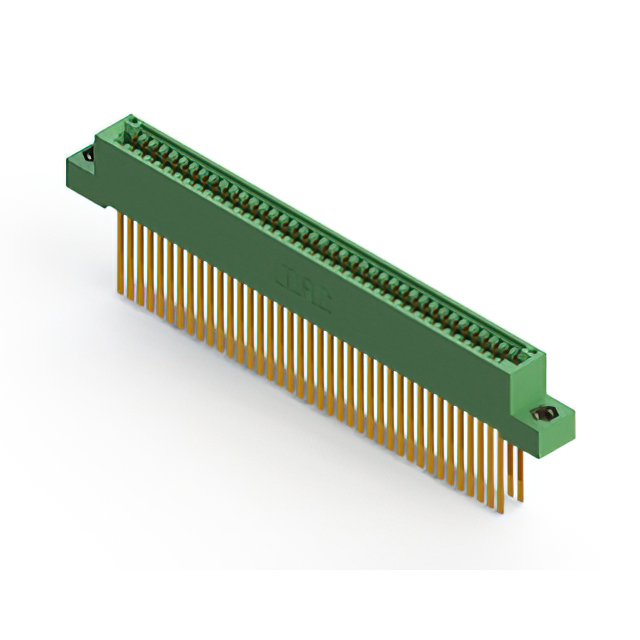

EDAC Inc. 845-078-544-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Wire Wrap	Gold	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	78	Through Hole	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge
EDAC Inc. 845-078-560-504	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	39	Cantilever	Female	2	Solder	Gold		0.156 "	3.96 mm	0.25 Ám	10 Áin	78	Board Edge Straddle Mount	Dual	125 °C	-40 C	Green	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Card Extender
