OY Series
Manufacturer: Ohmite
Beta
⌘K
CERAMIC COMPOSITION RESISTORS SUGGESTED ALTERNATE OC2K823E
| Part | Tolerance | Composition | Operating Temperature [Min] | Operating Temperature [Max] | Features | Supplier Device Package | Power (Watts) | Temperature Coefficient [Max] | Temperature Coefficient [Min] | Number of Terminations [custom] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Resistance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 82 kOhms | Axial |
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 180 Ohms | Axial |
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 3.9 Ohms | Axial |
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 150000 Ohms | Axial |
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 270 kOhms | Axial |
 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 27 Ohms | Axial |

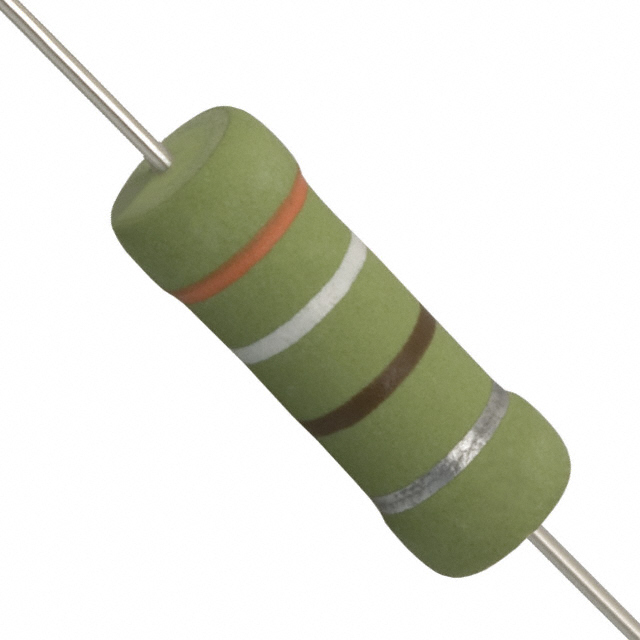

 Ohmite | 10 % | Ceramic | -40 C | 220 °C | Moisture Resistant Pulse Withstanding | Axial | 2 W | -1600 ppm/°C | -1000 ppm/°C | 2 | 7 mm | 0.276 in | 19 mm | 0.748 in | 390 Ohms | Axial |
