MSS1 Series

Catalog

SWITCH SLIDE SP4T 300MA 125V

Part	Mechanical Life	Actuator Material	Operating Force	Switch Travel	Electrical Life	Voltage Rating - AC	Actuator Type	Circuit	Contact Finish	Termination Style	Contact Material	Switch Function	Mounting Type	Features	Contact Timing	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Length [x]
TE Connectivity AMP Connectors MSS1400	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	2 mm	15000 Cycles	125 V	Standard	SP4T	Silver	PC Pin	Copper Alloy	On-On-On-On	Through Hole	Epoxy Sealed Terminals	Shorting (MBB)	85 °C	-20 ░C	300 mA

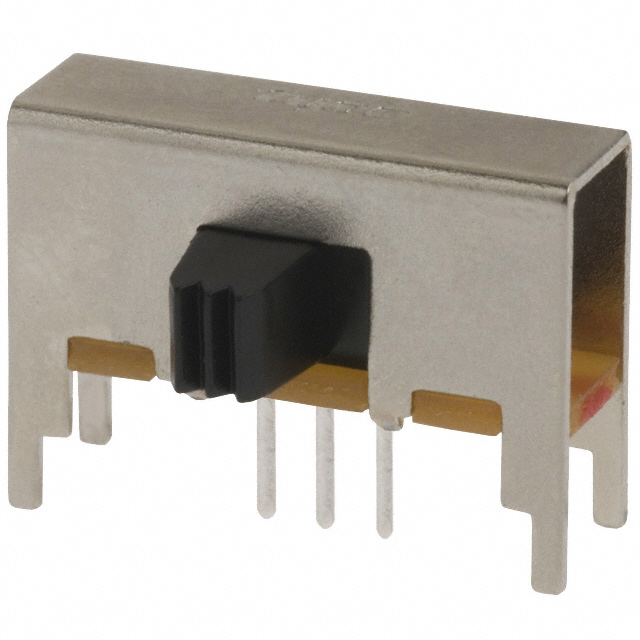

TE Connectivity AMP Connectors MSS1200R	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	2 mm	15000 Cycles	125 V	Standard	SPDT	Silver	PC Pin	Copper Alloy	On-On	Right Angle Through Hole	Epoxy Sealed Terminals	Shorting (MBB)	85 °C	-20 ░C	300 mA	4 mm
TE Connectivity AMP Connectors MSS1200	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	2 mm	15000 Cycles	125 V	Standard	SPDT	Silver	PC Pin	Copper Alloy	On-On	Through Hole	Epoxy Sealed Terminals	Shorting (MBB)	85 °C	-20 ░C	300 mA	5 mm
TE Connectivity AMP Connectors MSS1300	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	2 mm	15000 Cycles	125 V	Standard	SP3T	Silver	PC Pin	Copper Alloy	On-On-On	Through Hole	Epoxy Sealed Terminals	Shorting (MBB)	85 °C	-20 ░C	300 mA	3.8 mm
