Schaffner FN3271 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 800A CHASSIS MOUNT

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)	Frequency - Operating	Termination Style	Configuration	Current	Filter Type	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications
TE Connectivity AMP Connectors FN3271H-800-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	800 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-150-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	150 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-600-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	600 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-400-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	400 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems

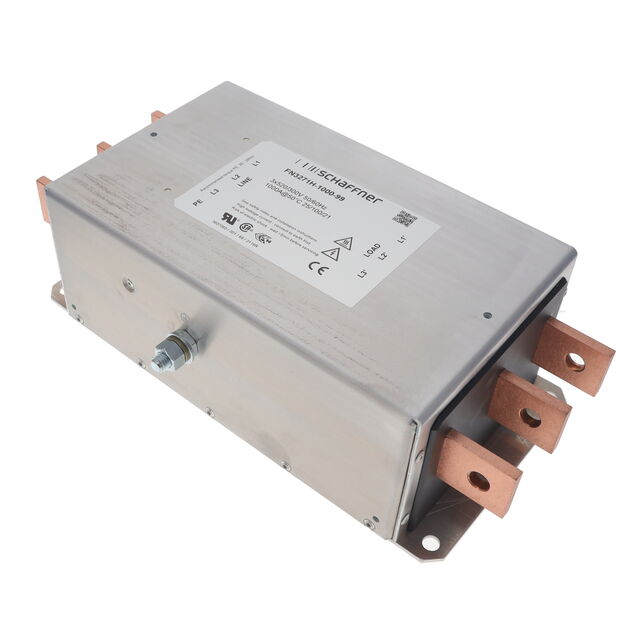

TE Connectivity AMP Connectors FN3271H-1000-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	1 kA	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-250-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	250 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-320-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	320 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
TE Connectivity AMP Connectors FN3271H-200-99	300 V	520 V	60 Hz	Terminal Post	Single Stage	200 A	Three Phase (Delta)	Chassis Mount	CE ENEC UKCA UR	100 °C	-25 °C	Inverters Power Drive Systems
