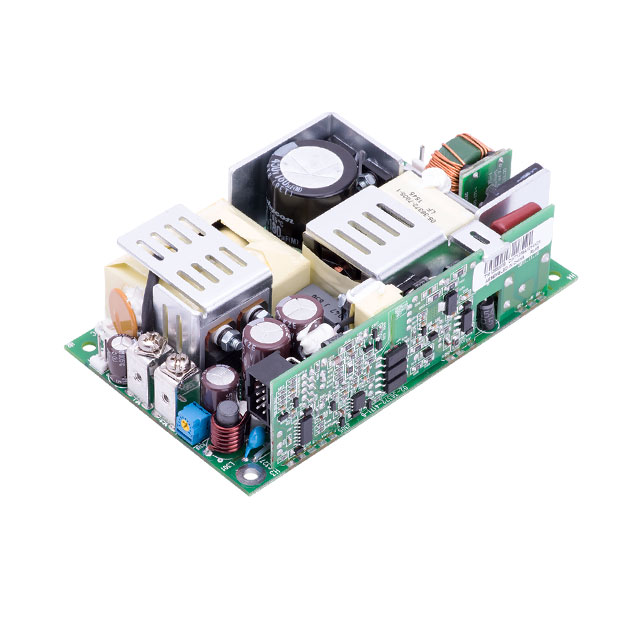

CINT1275 Series

Catalog

AC/DC CONVERTER 12V 180W

Part	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Efficiency	Applications	Mounting Type	Current - Output 1	Power (Watts)	Features
SL POWER / Advanced Energy CINT1275A1214K01	12 V	1	70 °C	-10 °C	CE	4000 V	264 VAC	90 VAC	Open Frame	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	92 %	ITE (Commercial)	Chassis Mount	15 A	180 W 275 W	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1275A4814K01	48 V	1	70 °C	-10 °C	CE	4000 V	264 VAC	90 VAC	Open Frame	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	92 %	ITE (Commercial)	Chassis Mount	3.75 A	180 W 275 W	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1275A2414K01	24 V	1	70 °C	-10 °C	CE	4000 V	264 VAC	90 VAC	Open Frame	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	92 %	ITE (Commercial)	Chassis Mount		180 W 275 W	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1275A5614K01	56 V	1	70 °C	-10 °C	CE	4000 V	264 VAC	90 VAC	Open Frame	3 "	1.38 in	5 "	35.1 mm 76.2 mm 127 mm	92 %	ITE (Commercial)	Chassis Mount	3.2 A	180 W 275 W	Adjustable Output DC Input Capable Standby Output Universal Input
