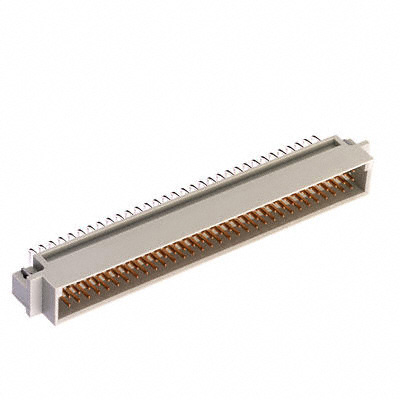

DIN-096C Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K
CONN DIN RCPT 96POS PCB GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Positions | Termination | Style | Number of Rows [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Connector Type | Contact Finish | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 96 | Solder | C | 3 | Through Hole | 3 µin | 0.076 Ám | All | Receptacle Female Sockets | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 96 | Solder | C | 3 | Through Hole | 30 Áin | 0.76 Ám | All | Receptacle Female Sockets | Gold | 0.1 " | 2.54 mm | Board Lock |
 3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 3 µin | 0.076 Ám | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 96 | Press-Fit | C | 3 | Through Hole | 30 Áin | 0.76 Ám | All | Receptacle Female Sockets | Gold | 0.1 " | 2.54 mm | |
 3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 30 Áin | 0.76 Ám | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 30 Áin | 0.76 Ám | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm | Board Lock |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 3 µin | 0.076 Ám | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 96 | Press-Fit | C | 3 | Through Hole | 3 µin | 0.076 Ám | All | Receptacle Female Sockets | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 3 µin | 0.076 Ám | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm | |
3M Electronic Specialty | UL94 V-0 | 3 A | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | 96 | Solder | C | 3 | Right Angle Through Hole | 1 µin | 0.025 µm | All | Plug Male Pins | Gold | 0.1 " | 2.54 mm |
