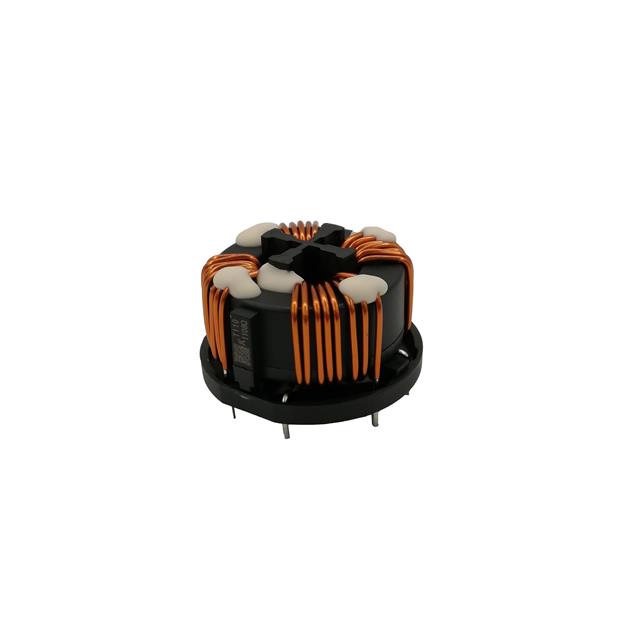

SCF-XV 4 Phase Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKES / FILTERS 1000V 0.9 MH 17A 4-PHASE 2.830 MOHM AEC-Q200
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Number of Lines | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Current Rating (Max) [Max] | Voltage Rating - DC | Voltage Rating - DC | Mounting Type | Ratings | Size / Dimension [diameter] | Size / Dimension [diameter] | DC Resistance (DCR) (Max) | Voltage Rating - AC | Voltage Rating - AC | Inductance @ Frequency | Features | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8 PC Pin Horizontal | -40 C | 150 °C | 2 | 1.299 in | 33 mm | 17 A | 1 kV | 1 kVDC | Through Hole | AEC-Q200 | 2.087 " | 53 mm | 2.83 mOhm | 1 kV | 1 kV | 900 µH | Nanocrystalline Core | Power Line |
