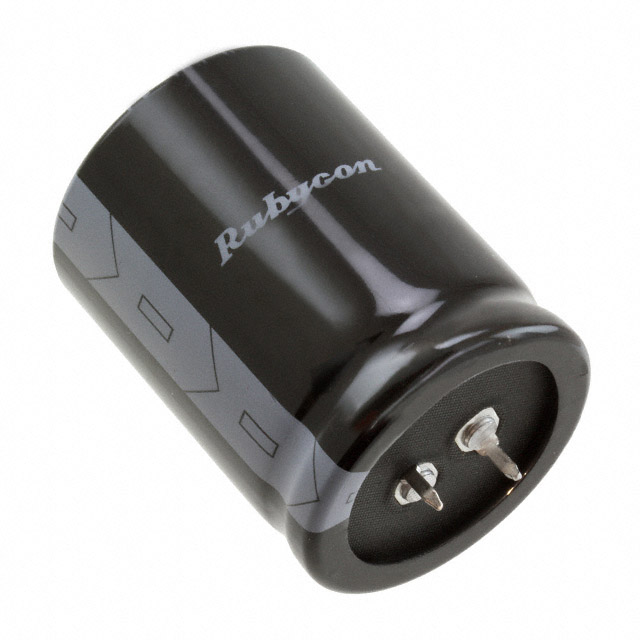

HXG Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 420V 220UF 105C 20%

Part	Applications	Ripple Current @ High Frequency	Package / Case	Lifetime @ Temp.	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 420HXG220MEFCSN25X40	General Purpose	2.758 A	Radial Can - Snap-In	3000 Hrs	1.97 A	0.984 "	25 mm	Polar	105 ░C	-25 °C	Through Hole	420 V	42 mm	1.654 in	20 %	220 µF	0.394 in	10 mm
Rubycon 400HXG220MEFCSN30X30	General Purpose	2.632 A	Radial Can - Snap-In	3000 Hrs	1.88 A	1.181 "		Polar	105 ░C	-25 °C	Through Hole	400 V	32 mm	1.26 in	20 %	220 µF	0.394 in	10 mm	30 mm
Rubycon 420HXG470MEFCSN30X50	General Purpose	4.172 A	Radial Can - Snap-In	3000 Hrs		1.181 "		Polar	105 ░C	-25 °C	Through Hole	420 V			20 %	470 µF	0.394 in	10 mm	30 mm	2.047 in	52 mm
Rubycon 400HXG100MEFCSN22X25	General Purpose	1.725 A	Radial Can - Snap-In	3000 Hrs	1.15 A	0.866 "	22 mm	Polar	105 ░C	-25 °C	Through Hole	400 V			20 %	100 µF	0.394 in	10 mm		1.063 in	27 mm
