AC025 Series Series
Manufacturer: Adam Tech
Beta
⌘K

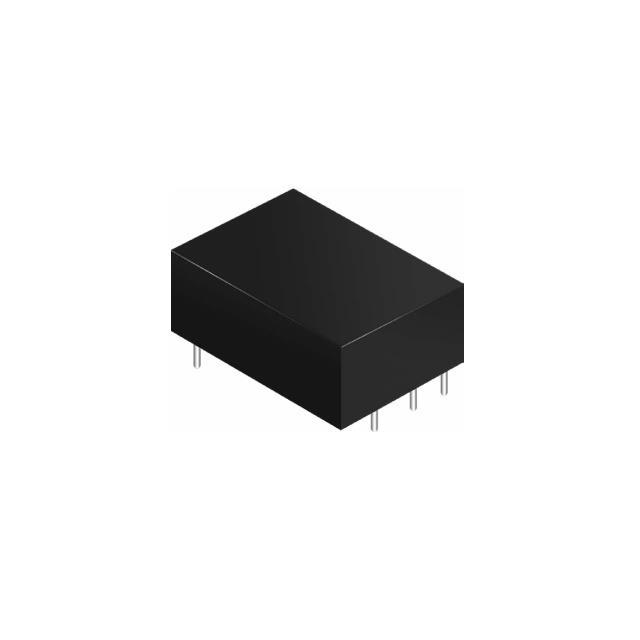

AC/DC POWER MODULES AC-DC CONVERTER, ISOLATED, UNIVERSAL INPUT 90-264VAC, DUAL OUTPUT, +/-24VDC OUTPUT VOLTAGE, 24W
| Part | Load Regulation | Line Regulation | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Number of Outputs | Voltage - Output 2 | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Applications | Power (Watts) | Current - Output (Max) | Standard Number | Mounting Type | Features | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Ý5% | 1 % | 70 °C | -20 °C | 6-DIP Module | 25.4 mm | 3 in | 25.4 mm | 50.8 mm | 50.8 mm | 76.2 mm | 24 V | 2 | -24 V | 90 VAC 120 VDC | 264 VAC 370 VDC | 80 % | ITE (Commercial) | 24 W | 500 mA | 62368-1 | Through Hole | Universal Input | Enclosed |
