8380-3SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

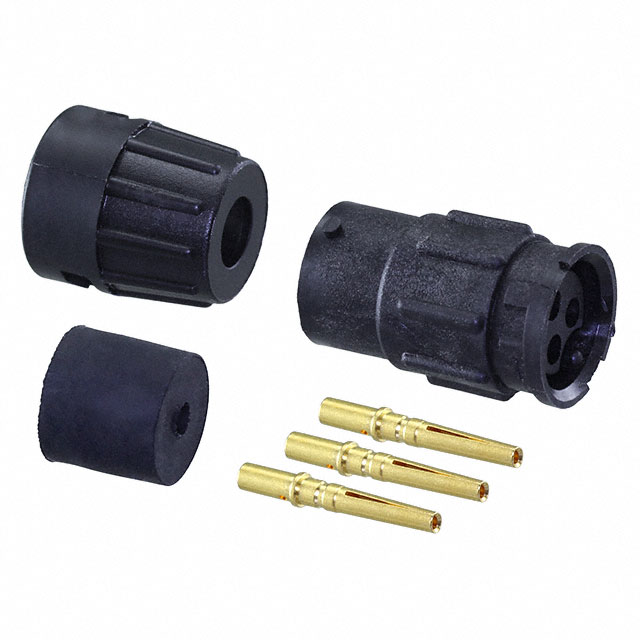

MINI-CON-X CABLE-TO-CABLE, 3-PIN #16, FEMALE, CRIMP, BULK
| Part | Shielding | Contact Material | Current Rating (Amps) | Primary Material | Ingress Protection | Orientation | Color | Termination | Connector Type | Mounting Type | Applications | Contact Finish - Mating | Features | Voltage Rating | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Unshielded | Brass | Varies by Wire Gauge | Plastic | Weathertight | Keyed | Black | Crimp | Receptacle Female Sockets | Free Hanging (In-Line) | Automotive Communication Systems Instrumentation | Gold | Backshell | 600 V | Nylon Polyamide (PA) | 115 °C | -40 C | Bayonet Lock | ||||
 SWITCHCRAFT/CONXALL | Unshielded | Brass | Varies by Wire Gauge | Plastic | Weathertight | Keyed | Black | Crimp | Receptacle Female Sockets | Free Hanging (In-Line) | Automotive Communication Systems Instrumentation | Gold | Backshell | 600 V | Nylon Polyamide (PA) | 115 °C | -40 C | Bayonet Lock | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm |
