MKDSF Series
Manufacturer: Phoenix Contact
Beta
⌘K

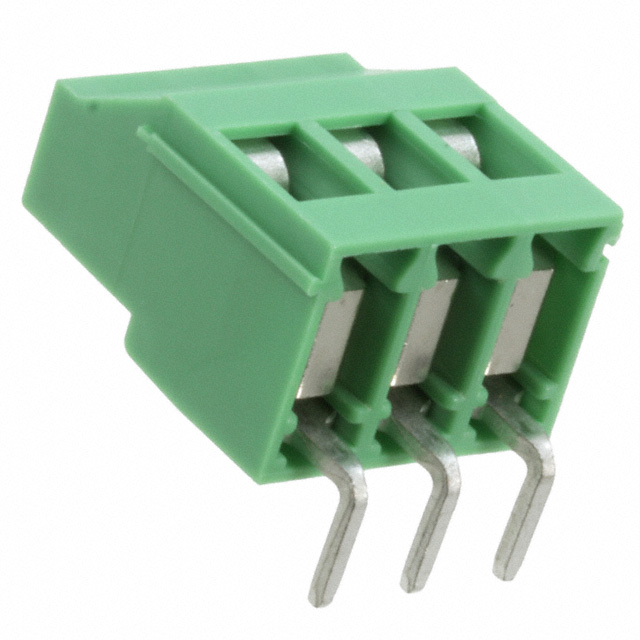

FIXED TERMINAL BLOCKS MKDSF 3/ 3-5 08
| Part | Housing Material | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Screw Thread | Current | Positions Per Level | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Mating Orientation | Features | Voltage | Number of Levels | Color | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | 0.6 Nm | 4.4 Lb-In | 0.5 Nm | 5.3 Lb-In | M3 | 15 A | 3 | Screw - Rising Cage Clamp | 30 AWG | 12 AWG | Through Hole | Vertical with Board | Interlocking (Side) | 300 VDC | 1 | Green | 5.08 mm | 0.2 in |
