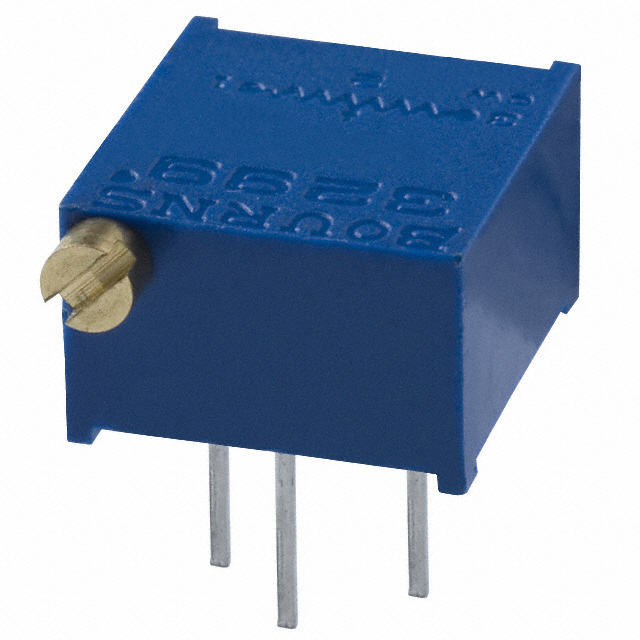

3299P Series

Catalog

TRIMMER 200 OHM 0.5W PC PIN SIDE

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistive Material	Tolerance	Number of Turns	Resistance	Termination Style	Adjustment Type
Bourns Inc. 3299P-1-201LF	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	200 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-505LF	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	5000000 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-103	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	10000 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-503LF	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	50000 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-105	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	1 MOhms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-253	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	25 kOhms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-204	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	200000 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-503	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	50000 Ohms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-502	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	5 kOhms	PC Pins	Side Adjustment
Bourns Inc. 3299P-1-204LF	Through Hole	0.375 in	9.53 mm	0.24 "	6.1 mm	100 ppm/°C	0.5 W	0.5 W	Cermet	10 %	25	200000 Ohms	PC Pins	Side Adjustment
