R12565 Series

Catalog

SMA / RIGHT ANGLE SQUARE FLANGE

Part	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Body Finish	Voltage Rating	Features	Number of Ports	Connector Style	Mounting Type	Frequency - Max [Max]	Mounting Feature	Connector Type	Impedance	Fastening Type	Housing Color	Contact Termination	Shield Termination	Center Contact Material

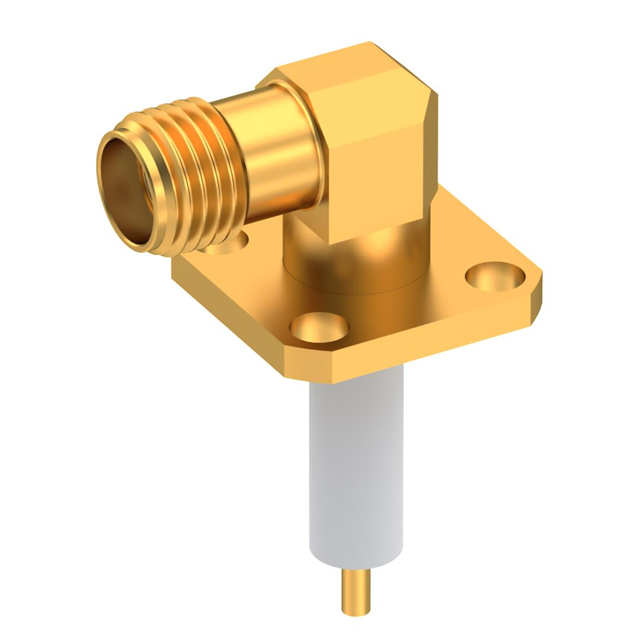

Radiall USA, Inc. R125654450	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel	Gold	500 V	Extended Insulation	1	SMA	Panel Mount Right Angle Through Hole	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded	Gold	Solder	Solder	Beryllium Copper

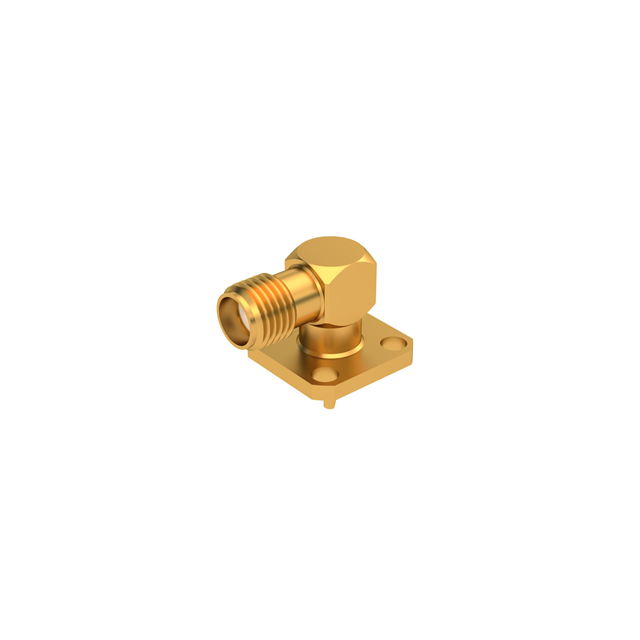

Radiall USA, Inc. R125654000	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel	Gold	500 V		1	SMA	Panel Mount Right Angle	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded	Gold	Solder Cup	Solder	Beryllium Copper

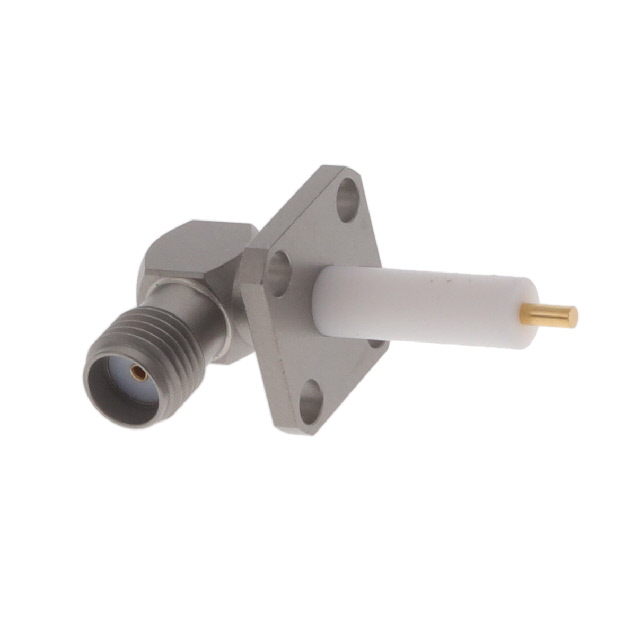

Radiall USA, Inc. R125654451	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel		500 V	Extended Insulation	1	SMA	Panel Mount Right Angle	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded		Solder	Solder	Beryllium Copper
Radiall USA, Inc. R125654000W	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel	Gold	500 V		1	SMA	Panel Mount Right Angle	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded	Gold	Solder Cup	Solder	Beryllium Copper
Radiall USA, Inc. R125654450W	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel	Gold	500 V	Extended Insulation	1	SMA	Panel Mount Right Angle Through Hole	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded	Gold	Solder	Solder	Beryllium Copper
Radiall USA, Inc. R125654451W	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	500	Stainless Steel		500 V	Extended Insulation	1	SMA	Panel Mount Right Angle Through Hole	18 GHz	Flange	Female Socket Jack	50 Ohms	Threaded	Silver	Solder	Solder	Beryllium Copper
