BSCQ Series

RF Inductors - SMD Chilisin RF inductor Multilayer-STD

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD Chilisin RF inductor Multilayer-STD

Catalog

RF Inductors - SMD Chilisin RF inductor Multilayer-STD

Part	DC Resistance (DCR)	Mounting Type	Inductance	Package / Case	Package / Case	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Current Rating (Amps)	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	Type	Current - Saturation (Isat)	DC Resistance (DCR) [Max]
Pulse Electronics BSCQ000603034N7C00	420 mOhm	Surface Mount	4.7 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	6.4 GHz	350 mA	0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.2 nH	Ceramic	500 MHz	14	Unshielded	Multilayer
Pulse Electronics BSCQ000603036N8JHR	550 mOhm	Surface Mount	6.8 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	4.8 GHz		0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	5 %	Ceramic	500 MHz	14	Unshielded	Multilayer	305 mA
Pulse Electronics BSCQ000603031N7S00	110 mOhm	Surface Mount	1.7 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	10 GHz	0.68 A	0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.3 nH	Ceramic	500 MHz	14	Unshielded	Multilayer
Pulse Electronics BSCQ000603032N2B00	200 mOhm	Surface Mount		0603 Metric	0201	500 MHz	-55 C	125 °C	10 GHz	0.5 A	0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.1 nH	Ceramic	500 MHz	14	Unshielded	Multilayer
Pulse Electronics BSCQ000603031N4SHR		Surface Mount	1.4 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	10 GHz		0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.3 nH	Ceramic	500 MHz	14	Unshielded	Multilayer	640 mA	120 mOhm
Pulse Electronics BSCQ000603033N7BHR		Surface Mount	3.7 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	8 GHz		0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.1 nH	Ceramic	500 MHz	14	Unshielded	Multilayer	370 mA	360 mOhm
Pulse Electronics BSCQ000603032N1C00		Surface Mount	2.1 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	10 GHz	0.55 A	0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.2 nH	Ceramic	500 MHz	14	Unshielded	Multilayer		160 mOhm
Pulse Electronics BSCQ000603033N2SHR		Surface Mount	3.2 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	8.7 GHz		0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.3 nH	Ceramic	500 MHz	14	Unshielded	Multilayer	415 mA	280 mOhm
Pulse Electronics BSCQ000603033N8C00		Surface Mount		0603 Metric	0201	500 MHz	-55 C	125 °C	7.8 GHz	355 mA	0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.2 nH	Ceramic	500 MHz	14	Unshielded	Multilayer		400 mOhm

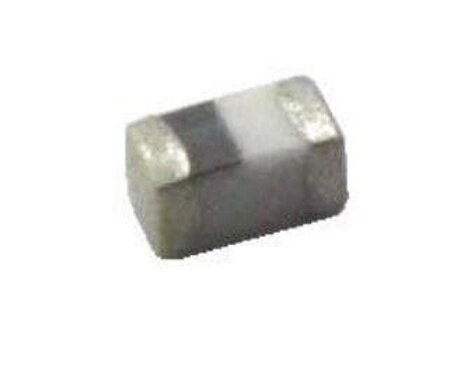

Pulse Electronics BSCQ000603032N4CHR	260 mOhm	Surface Mount	2.4 nH	0603 Metric	0201	500 MHz	-55 C	125 °C	10 GHz		0201	0.013 "	0.33 mm	0.012 in	0.024 in	0.3 mm	0.6 mm	0.2 nH	Ceramic	500 MHz	14	Unshielded	Multilayer	430 mA
