RP180 Series

Catalog

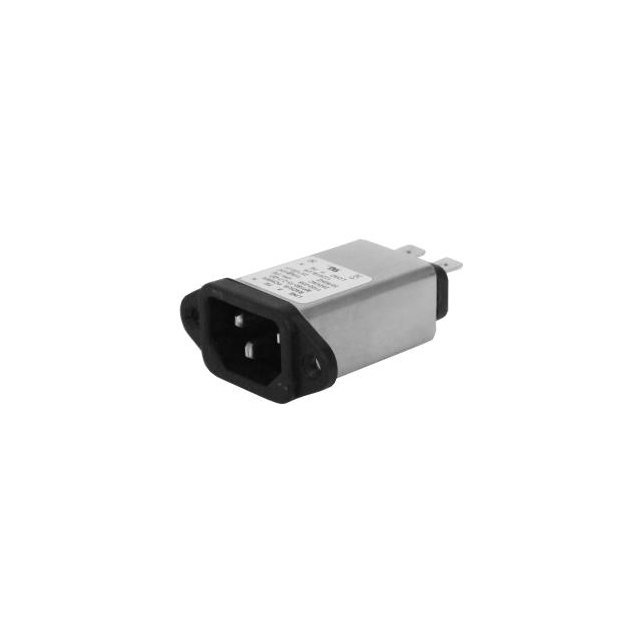

LINE FILTER 250VAC 20A CHASSIS

Part	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Voltage - Rated AC	Applications	Approval Agency
Astrodyne TDI RP180-20-1-W	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-0-QD	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Quick Connect	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-15-.22-W	Single Phase	60 Hz	50 Hz	15 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-.47-QD	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Quick Connect	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-15-2.2-W	Single Phase	60 Hz	50 Hz	15 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-4.7-W	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-15-0-W	Single Phase	60 Hz	50 Hz	15 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-.22-QD	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Quick Connect	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-2.2-W	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Wire Leads	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
Astrodyne TDI RP180-20-2.2-QD	Single Phase	60 Hz	50 Hz	20 A	Chassis Mount	IEC 320-C14 Quick Connect	100 °C	-25 °C	Single Stage	250 V	General Purpose	CE cURus ENEC
