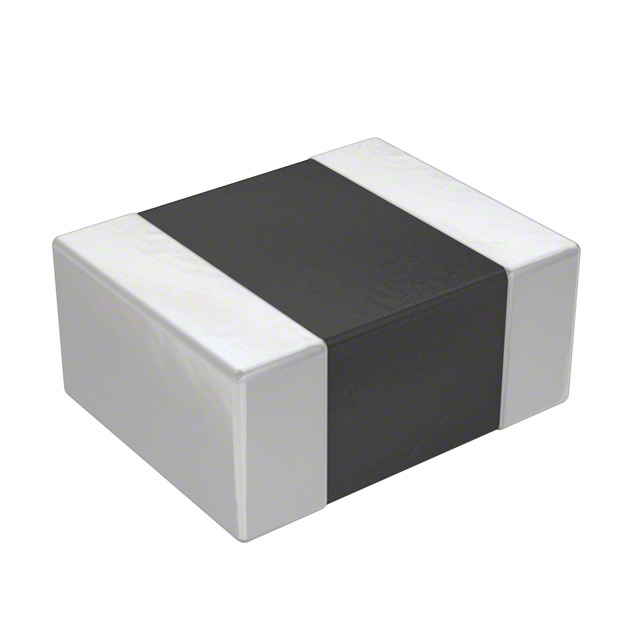

ASMPH-0806 Series
Manufacturer: Abracon LLC
Beta
⌘K
FIXED IND 470NH 1.5A 80 MOHM SMD / TAPE & REEL (TR) ROHS COMPLIANT: YES
| Part | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Material - Core | Current - Saturation (Isat) | Frequency - Self Resonant | Type | Supplier Device Package | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Shielding | DC Resistance (DCR) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 470 nH | 0.039 in | 1 mm | Ferrite | 1.6 A | 100 MHz | Multilayer | 0806 (2016 Metric) | 1 MHz | 1.6 mm | 0.079 in | 0.063 " | 2 mm | 0806 (2016 Metric) | Surface Mount | Shielded | 80 mOhm | 1.5 A | 85 °C | -40 C | 20 % |
