CII FC-335 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

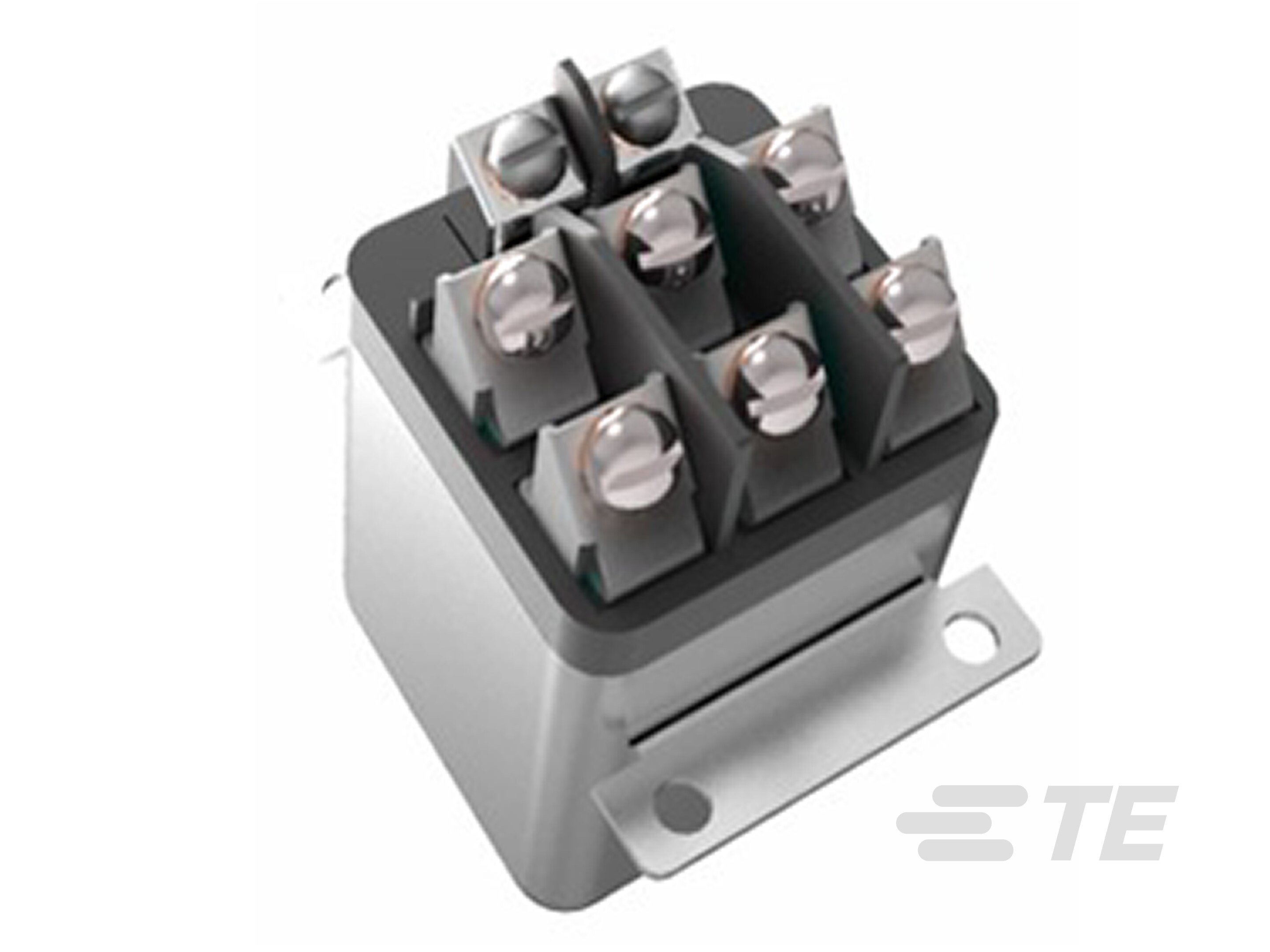

POWER RELAY 28VDC 3PST-NO-DM(38.88X38.88X42.67)MM STUD
| Part | Coil Resistance | Relay Type | Must Operate Voltage | Coil Current | Release Time | Coil Type | Operate Time | Seal Rating | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Contact Form | Coil Voltage | Mounting Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 160 Ohms | General Purpose | 18 VDC | 750 mA | 10 ms | Non Latching | 20 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 1.5 VDC | 3PST-NO (DM) (3 Form X) | 28 VDC | Chassis Mount | Solder Hook |
 TE Connectivity AMP Connectors | 160 Ohms | General Purpose | 18 VDC | 750 mA | 10 ms | Non Latching | 20 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 1.5 VDC | 3PST-NO (DM) (3 Form X) | 28 VDC | Chassis Mount | Screw Terminal |
TE Connectivity AMP Connectors | General Purpose | 18 VDC | 750 mA | 10 ms | Non Latching | 20 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 1.5 VDC | 3PST-NO (DM) (3 Form X) | 28 VDC | Chassis Mount | Screw Terminal | |
 TE Connectivity AMP Connectors | General Purpose | 95 VAC/DC | 600 mA | 50 ms | Non Latching | 25 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 5 VAC | 3PST-NO (DM) (3 Form X) | 115 VAC | Chassis Mount | Solder Hook | |
TE Connectivity AMP Connectors | 209 Ohms | General Purpose | 95 VAC/DC | 550 mA | 50 ms | Non Latching | 25 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 5 VAC | 3PST-NO (DM) (3 Form X) | 115 VAC | Chassis Mount | Solder Hook |
TE Connectivity AMP Connectors | 192 Ohms | General Purpose | 95 VAC/DC | 600 mA | 50 ms | Non Latching | 25 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 5 VAC | 3PST-NO (DM) (3 Form X) | 115 VAC | Chassis Mount | Screw Terminal |
 TE Connectivity AMP Connectors | 160 Ohms | General Purpose | 18 VDC | 750 mA | 10 ms | Non Latching | 20 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 1.5 VDC | 3PST-NO (DM) (3 Form X) | 28 VDC | Chassis Mount | Solder Hook |
 TE Connectivity AMP Connectors | General Purpose | 95 VAC/DC | 550 mA | 50 ms | Non Latching | 25 ms | Sealed - Hermetically | 35 A | -70 °C | 125 °C | 5 VAC | 3PST-NO (DM) (3 Form X) | 115 VAC | Chassis Mount | Screw Terminal |
