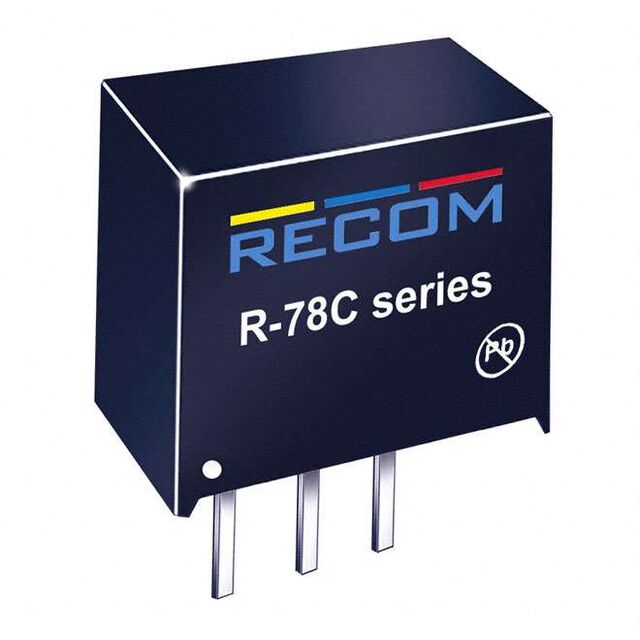

R-78C Series
Manufacturer: Recom Power
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS CONV DC/DC 1A 18-42VIN 15VOUT
| Part | Applications | Voltage - Input (Min) [Min] | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Type | Voltage - Output 1 | Number of Outputs | Current - Output (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | ITE (Commercial) | 18 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 96 % | Linear Regulator Replacement | 15 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 15 W | Through Hole |
 Recom Power | ITE (Commercial) | 15 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 96 % | Linear Regulator Replacement | 12 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 12 W | Through Hole |
 Recom Power | ITE (Commercial) | 12 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 95 % | Linear Regulator Replacement | 9 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 9 W | Through Hole |
Recom Power | ITE (Commercial) | 5 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 80 % | Linear Regulator Replacement | 1.8 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 1.8 W | Through Hole |
 Recom Power | ITE (Commercial) | 8 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 93 % | Linear Regulator Replacement | 5 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 5 W | Through Hole |
Recom Power | ITE (Commercial) | 7 V | OTP SCP | 8.5 mm | 0.46 in | 10.4 mm | 11.6 mm | 0.33 " | 0.41 in | 89 % | Linear Regulator Replacement | 3.3 V | 1 | 1 A | 3-SIP Module | 85 °C | -40 C | 42 V | 3.3 W | Through Hole |
