412F Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

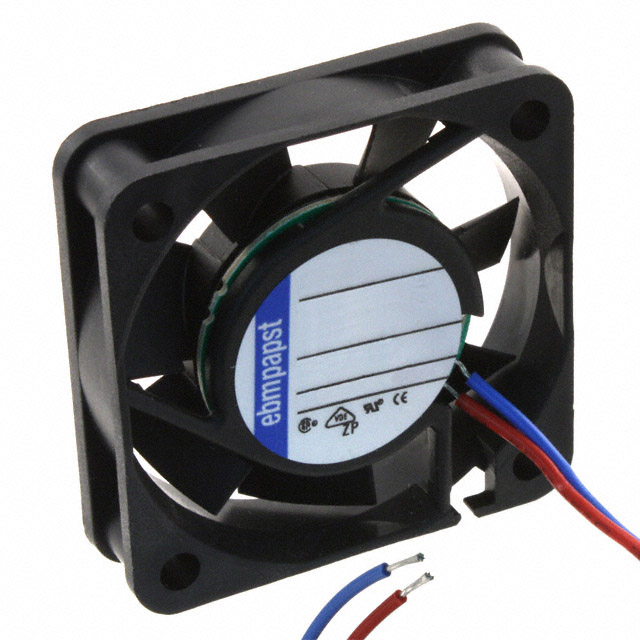

FAN AXIAL 40X10MM 12VDC WIRE
| Part | Material - Frame | Air Flow | Air Flow | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Approval Agency | Width [y] | Voltage - Rated | Fan Type | Termination | Noise | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Bearing Type | RPM | Weight [custom] | Weight [custom] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 5.3 CFM | 0.148 m³/min | Polyamide (PA) Nylon Fiberglass Reinforced | 10 VDC | 14 V | 45000 Hrs | CSA UL VDE | 10 mm | 12 VDC | Tubeaxial | 2 Wire Leads | 26 dB | 40 mm | 40 mm | 0.8 W | Sintec | 6000 RPM | 17.24 g | 0.038 lb | -20 ░C | 70 °C |
