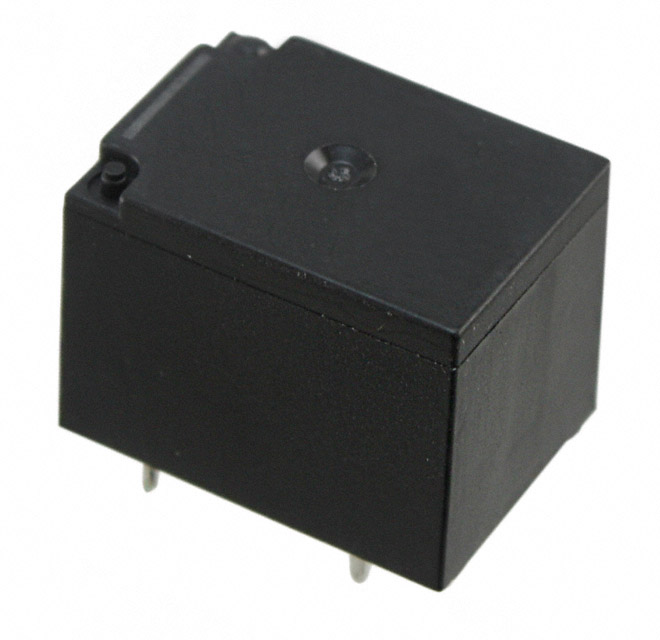

JS1-F-1 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 18V
| Part | Coil Resistance | Termination Style | Operate Time | Relay Type | Must Operate Voltage | Contact Material | Contact Rating (Current) | Approval Agency | Load - Max Switching | Coil Insulation | Switching Voltage [Max] | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Release Time | Coil Type | Coil Current | Coil Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 900 Ohms | PC Pin | 10 ms | General Purpose | 12.6 VDC | Silver Tin Oxide (AgSnO) | 10 A | CSA TUV UR VDE | 1000 W 2500 VA | Class F | 100 VDC 250 VAC | SPDT (1 Form C) | -40 C | 105 ░C | 1.8 VDC | 10 ms | Non Latching | 0.02 A | 18 VDC | Through Hole |
 Panasonic Electronic Components | 400 Ohms | PC Pin | 10 ms | General Purpose | 8.4 VDC | Silver Tin Oxide (AgSnO) | 10 A | CSA TUV UR VDE | 1000 W 2500 VA | Class F | 100 VDC 250 VAC | SPDT (1 Form C) | -40 C | 105 ░C | 1.2 VDC | 10 ms | Non Latching | 0.03 A | 12 VDC | Through Hole |
