327956 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

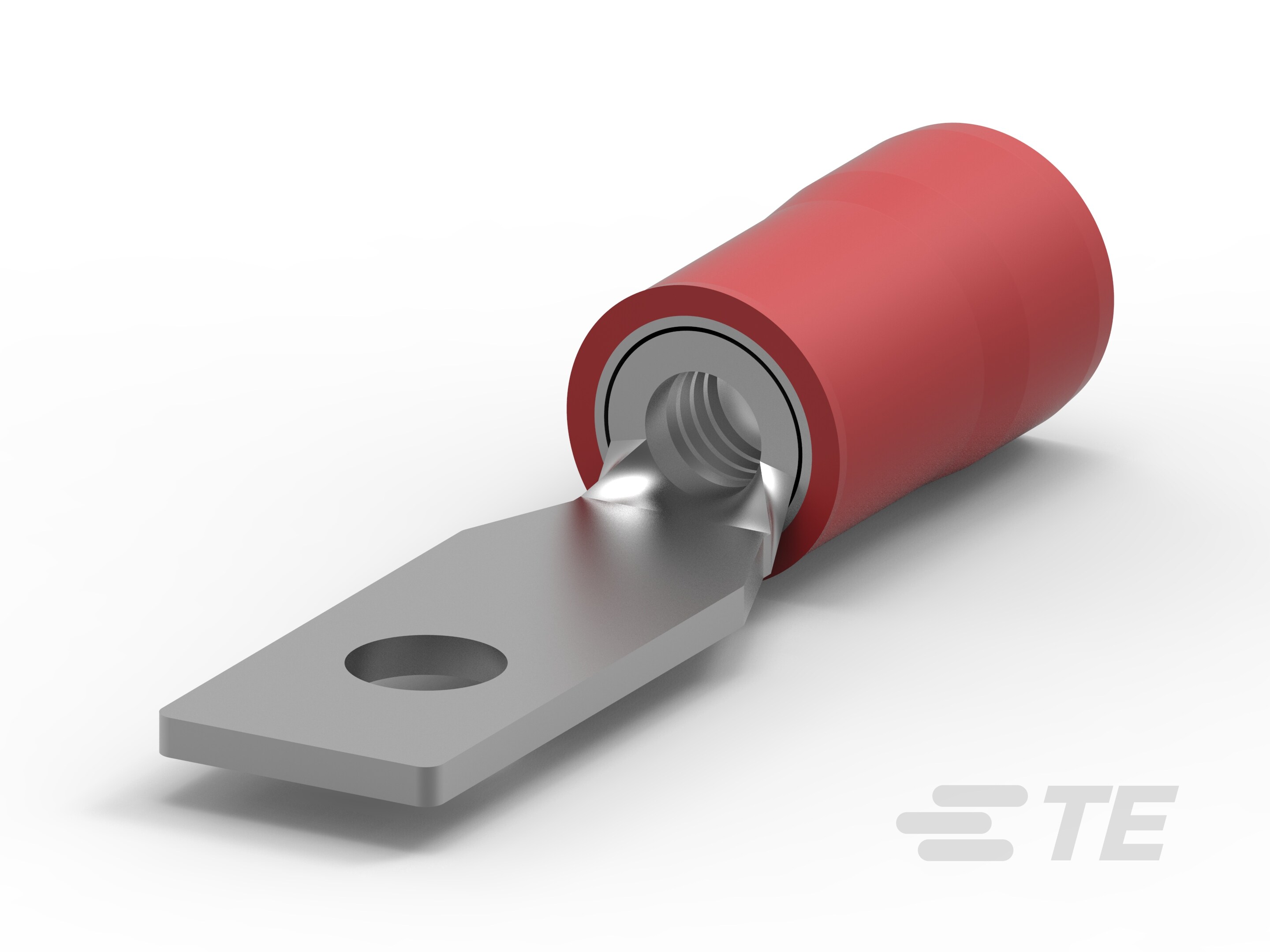

PIDG RECT 22-16COMM 22-18MIL 6
| Part | Insulation | Contact Material | Tab Thickness | Tab Thickness | Contact Finish | Features | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Terminal Style | Width - Outer Edges [x] | Width - Outer Edges [x] | Color | Length - Overall | Length - Overall | Terminal Type | Stud/Tab Size | Termination | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulated | Copper | 0.031 " | 0.79 mm | Tin | Serrated Termination | 22 AWG | 16 AWG | Free Hanging (In-Line) | Single Stud Hole | 0.237 in | 6.02 mm | Red | 25.78 mm | 1.015 in | Rectangular Tongue | 6 Stud | Crimp | 0.145 in | 3.68 mm |
