TPS Auto Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 25V .68UF 10% 1206 E SR = 6000MOHM

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Manufacturer Size Code	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Features	Ratings	Qualification	Voltage - Rated	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KYOCERA AVX TPSA684K025T6000
KYOCERA AVX TPSC685K025T0500
KYOCERA AVX TPSA225K016T1800	Molded	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	Automotive	A	10 %	1.8 mm	0.071 in	2.2 µF	1.8 Ohm	Surface Mount	Automotive	AEC-Q200	AEC-Q200	16 V	2000 Hrs	1206 (3216 Metric)

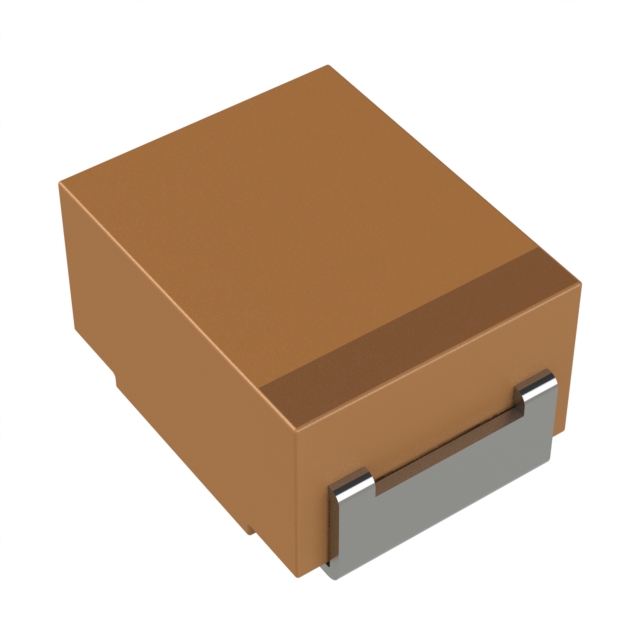

KYOCERA AVX TPSB685K025T0700
KYOCERA AVX TPSB106K016T0800
KYOCERA AVX TPSB476M010U0650	Molded	0.11 "	0.138 in	3.5 mm	2.8 mm	-55 C	125 °C	Automotive	B	20 %			47 µF	650 mOhm	Surface Mount	Automotive	AEC-Q200	AEC-Q200	10 V	2000 Hrs	1210 1411 (3528 Metric)	2.1 mm	0.083 in

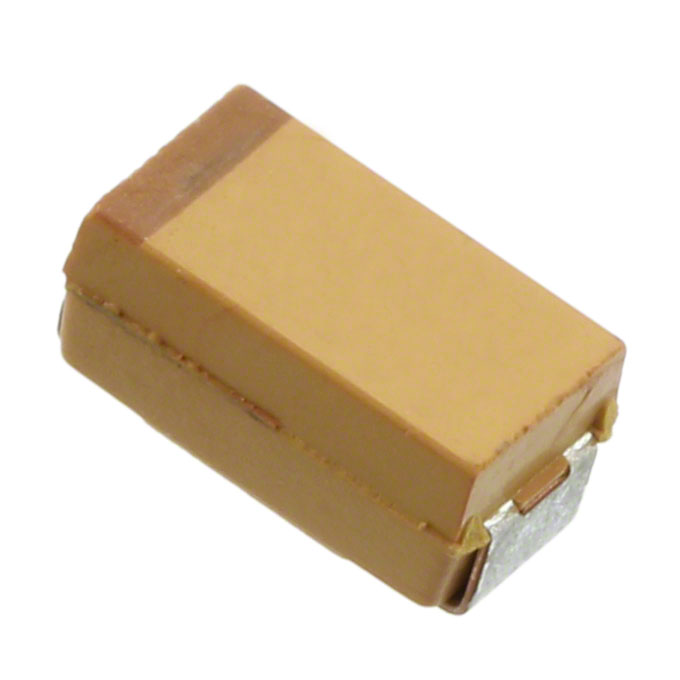

KYOCERA AVX TPSD336K035T0200V	Molded	0.169 "	0.287 "	7.3 mm	4.3 mm	-55 C	125 °C	Automotive	D	10 %			33 ÁF	200 mOhm	Surface Mount	Automotive	AEC-Q200	AEC-Q200	35 V	2000 Hrs	2917 (7343 Metric)	3.1 mm	0.122 in
KYOCERA AVX TPSB476K010T0650	Molded	0.11 "	0.138 in	3.5 mm	2.8 mm	-55 C	125 °C		B	10 %			47 µF	650 mOhm	Surface Mount	General Purpose			10 V		1210 1411 (3528 Metric)	2.1 mm	0.083 in
KYOCERA AVX TPSB225K035T0750	Molded	0.11 "	0.138 in	3.5 mm	2.8 mm	-55 C	125 °C	Automotive	B	10 %			2.2 µF	750 mOhm	Surface Mount	Automotive	AEC-Q200	AEC-Q200	35 V	2000 Hrs	1210 1411 (3528 Metric)	2.1 mm	0.083 in
KYOCERA AVX TPSB475K035T0700
