E3MS Series

Catalog

CONN RCPT MALE XLR 3P SILV SCREW

Part	Contact Material	Termination	Insert Material	Color	Shell Material	Contact Finish - Mating	Shielding	Mounting Feature	Applications	Shell Finish	Mounting Type	Current Rating (Amps)	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Features	Orientation	Primary Material
SWITCHCRAFT/CONXALL E3MSW	Copper Alloy	Screw	Thermoplastic	Silver	Zinc Die Cast	Silver	Shielded	Flange	Audio Instrumentation	Nickel	Panel Mount	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
SWITCHCRAFT/CONXALL E3MSTAU	Copper Alloy	Solder	Thermoplastic	Silver	Zinc Die Cast	Gold	Shielded	Flange	Audio Instrumentation	Nickel	Panel Mount Through Hole	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
SWITCHCRAFT/CONXALL E3MSCQG	Copper Alloy		Thermoplastic			Silver			Audio Instrumentation			15 A	XLR	-55 C	85 °C	Insert Male Pins		Insert Only Requires Shell	Keyed
SWITCHCRAFT/CONXALL E3MSC	Copper Alloy		Thermoplastic	Silver	Zinc Die Cast	Silver	Shielded	Flange	Audio Instrumentation	Nickel	Panel Mount	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
SWITCHCRAFT/CONXALL E3MSTBAU	Copper Alloy	Solder	Thermoplastic	Black	Zinc Die Cast	Gold	Shielded	Flange	Audio Instrumentation	Chrome	Panel Mount Through Hole	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
SWITCHCRAFT/CONXALL E3MSWEL	Copper Alloy	Screw	Thermoplastic	Silver	Zinc Die Cast	Silver	Shielded	Flange	Audio Instrumentation	Nickel	Panel Mount	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal

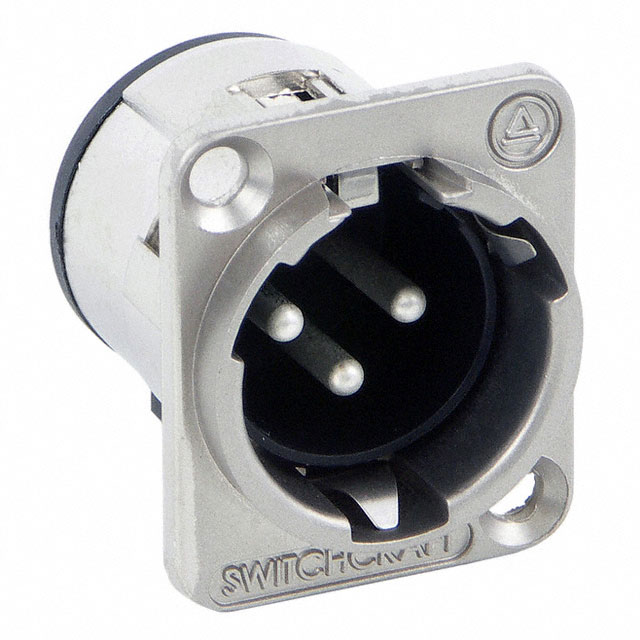

SWITCHCRAFT/CONXALL E3MST	Copper Alloy	Solder	Thermoplastic	Silver	Zinc Die Cast	Silver	Shielded	Flange	Audio Instrumentation	Nickel	Panel Mount Through Hole	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
SWITCHCRAFT/CONXALL E3MSCB	Copper Alloy		Thermoplastic	Black	Zinc Die Cast	Silver	Shielded	Flange	Audio Instrumentation	Chrome	Panel Mount	15 A	XLR	-55 C	85 °C	Receptacle Male Pins	Latch Lock	Ground	Keyed	Metal
