2081774 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

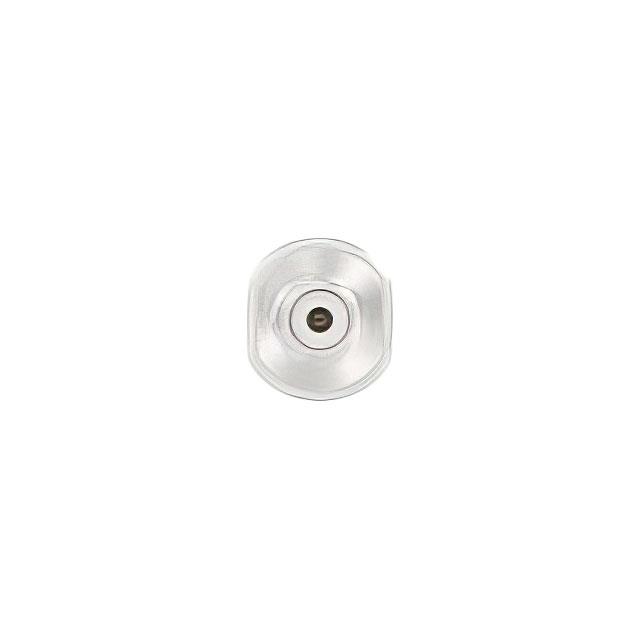

RF / COAXIAL ADAPTER, 1MM COAXIAL, PLUG, 1MM COAXIAL, RECEPTACLE, STRAIGHT ADAPTER, 50 OHM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Body Material | Center Contact Material | Adapter Type | Convert From (Adapter End) | Conversion Type | Center Contact Plating | Style | Adapter Series [Min] | Adapter Series [Max] | Impedance | Convert To (Adapter End) | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 °C | -40 C | 500 | Polyetherimide (PEI) | Stainless Steel | Beryllium Copper | Plug to Jack | 1.0mm Jack Female Socket | Same Series | Gold | Straight | 1.0/2.3 | 1.0/2.3 | 50 Ohms | 1 mm | Plug Male Pin | Free Hanging (In-Line) | 110 GHz |
