L77HDC62 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

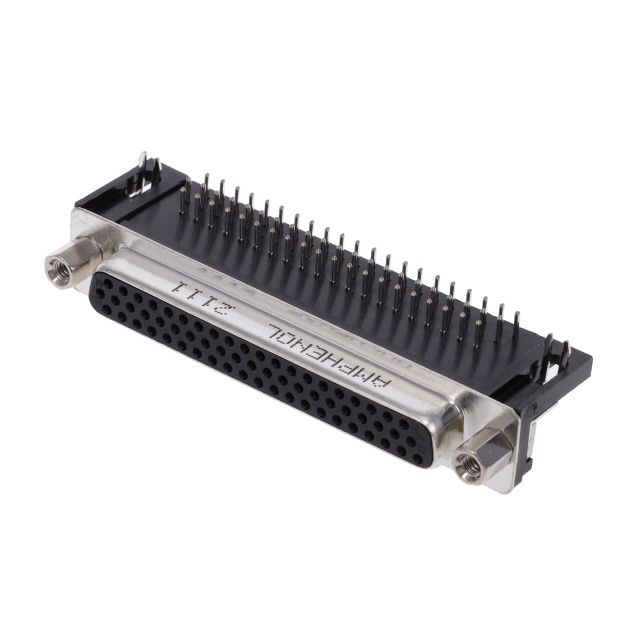

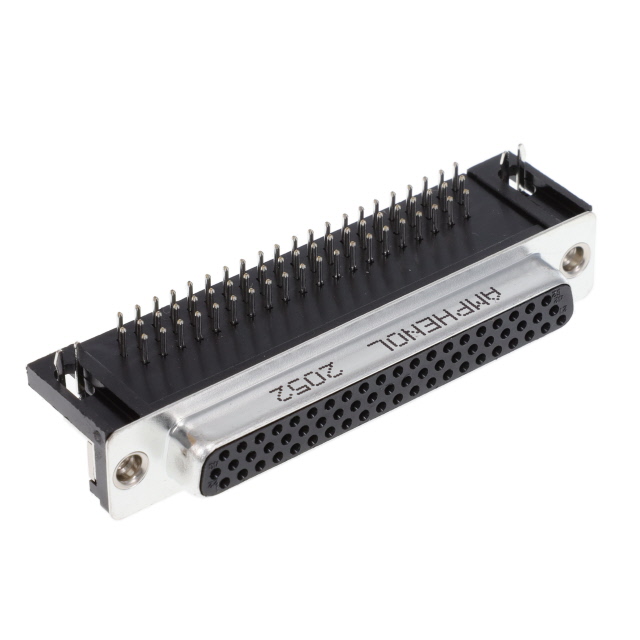

CONN D-SUB HD RCPT 62P R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Color | Contact Material | Contact Form | Features | Material Flammability Rating | Connector Type | Contact Type | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Current Rating (Amps) | Contact Finish Thickness | Number of Rows [custom] | Backset Spacing | Backset Spacing | Number of Positions | Termination | Flange Feature | Connector Style | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | 250 V | Thermoplastic Glass Filled | Black | Brass | Stamped | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Right Angle Through Hole | 3 A | Flash | 3 | 8.89 mm | 0.35 in | 62 | Solder | 4-40 Mating Side Female Screwlock | D-Sub High Density | ||
 Amphenol ICC (Commercial Products) | -55 C | 155 C | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | Stamped | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Free Hanging (In-Line) | 3 A | Flash | 3 | 62 | Housing/Shell (Unthreaded) | D-Sub High Density | |||||||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | 250 V | Thermoplastic Glass Filled | Black | Brass | Stamped | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Right Angle Through Hole | 3 A | 3 | 8.89 mm | 0.35 in | 62 | Solder | Mating Side Female Screwlock (M3) | D-Sub High Density | 30 Áin | 0.76 Ám | |
 Amphenol ICC (Commercial Products) | -55 C | 155 C | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | Stamped | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Free Hanging (In-Line) | 3 A | Flash | 3 | 62 | 4-40 Mating Side Female Screwlock | D-Sub High Density | |||||||
 Amphenol ICC (Commercial Products) | -55 C | 155 C | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | Stamped | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Free Hanging (In-Line) | 3 A | 3 | 62 | Housing/Shell (Unthreaded) | D-Sub High Density | 30 Áin | 0.76 Ám | ||||||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | 250 V | Thermoplastic Glass Filled | Black | Brass | Stamped | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Right Angle Through Hole | 3 A | Flash | 3 | 8.89 mm | 0.35 in | 62 | Solder | Board Side (M3) | D-Sub High Density | ||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | 250 V | Thermoplastic Glass Filled | Black | Brass | Stamped | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Through Hole | 3 A | 3 | 62 | Solder | Housing/Shell (Unthreaded) | D-Sub High Density | 30 Áin | 0.76 Ám | ||||
 Amphenol ICC (Commercial Products) | -55 C | 105 ░C | 250 V | Thermoplastic Glass Filled | Black | Brass | Stamped | Board Lock Grounding Tabs | UL94 V-0 | Receptacle Female Sockets | Signal | Gold | C DC | 4 | Right Angle Through Hole | 3 A | Flash | 3 | 8.89 mm | 0.35 in | 62 | Solder | Board Side (4-40) | D-Sub High Density |
