222ADV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Mounting Type	Circuit	Operating Force	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination	Switch Function	Actuator Height off PCB, Vertical [z]	Features	Outline [x]	Outline [y]	Contact Rating @ Voltage	Actuator Orientation

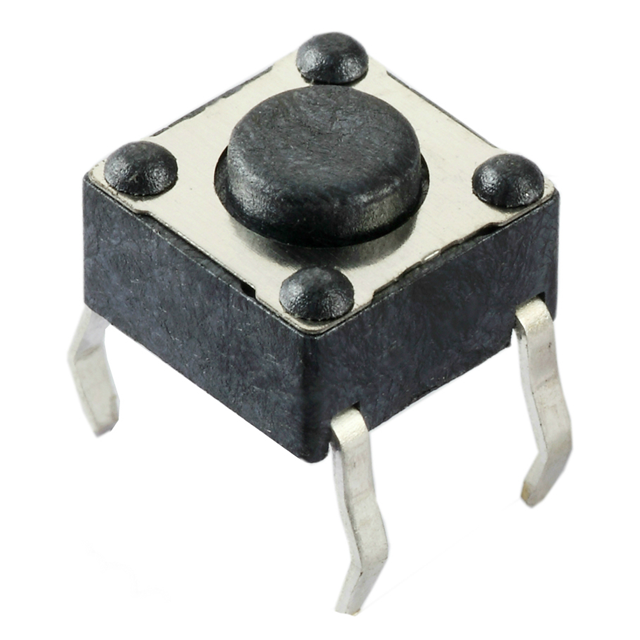

CTS Electrocomponents 222ADVAA	1000000 Cycles	0.25 mm	Through Hole	SPST-NO	160 gf	Standard	85 °C	-40 C	PC Pin	Non-Illuminated	Off-Mom	4.3 mm	Tactile Feedback	6.2 mm	6.2 mm	0.05 A 12 VDC	Top Actuated

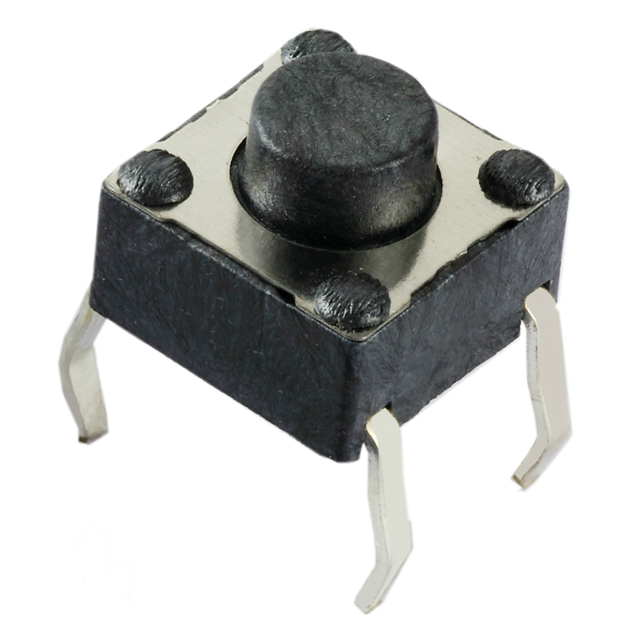

CTS Electrocomponents 222ADVBA	1000000 Cycles	0.25 mm	Through Hole	SPST-NO	160 gf	Standard	85 °C	-40 C	PC Pin	Non-Illuminated	Off-Mom	5 mm	Tactile Feedback	6.2 mm	6.2 mm	0.05 A 12 VDC	Top Actuated
