LM360 Series

Catalog

HIGH SPEED, LOW VOLTAGE COMPARATOR WITH DIFFERENTIAL OUTPUT

Part	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Current - Quiescent (Max) [Max]	Supplier Device Package	Mounting Type	Type	Number of Elements	Current - Output (Typ)	Voltage - Input Offset (Max) [Max]	Current - Input Bias (Max) [Max]	Propagation Delay (Max) [Max]	Voltage - Supply, Single/Dual () [Max]	Voltage - Supply, Single/Dual () [Min]	Operating Temperature [Max]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Package / Case	Package / Case

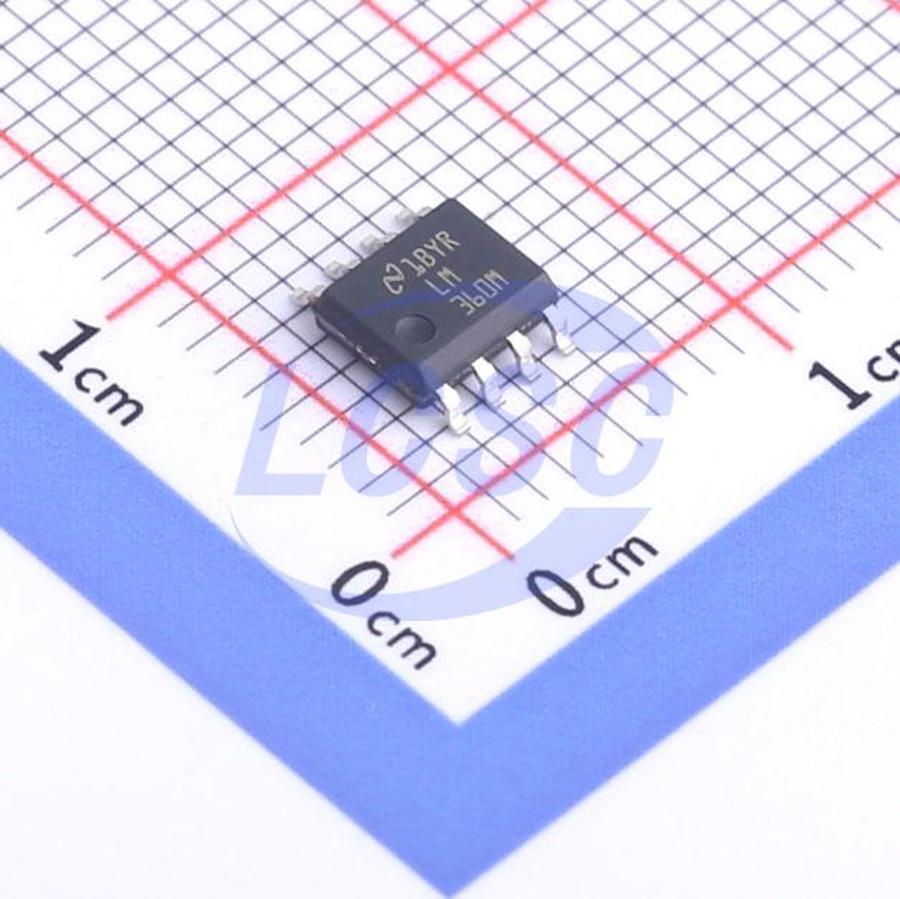

Texas Instruments LM360MX/NOPB	8-SOIC	3.9 mm	0.154 in	Complementary TTL	32 mA	8-SOIC	Surface Mount	Differential	1	20 mA	5 mV	20 A	130 ns	6.5 V	4.5 V	70 °C
Texas Instruments LM360H/NOPB	TO-99-8 Metal Can			Complementary TTL	32 mA	TO-99-8	Through Hole	Differential	1	20 mA	5 mV	20 µA	130 ns			70 °C	6.5 V	-4.5 V
Texas Instruments LM360N/NOPB	8-DIP			Complementary TTL	32 mA	8-PDIP	Through Hole	Differential	1	20 mA	5 mV	20 µA	130 ns			70 °C	6.5 V	-4.5 V	0.3 in	7.62 mm
