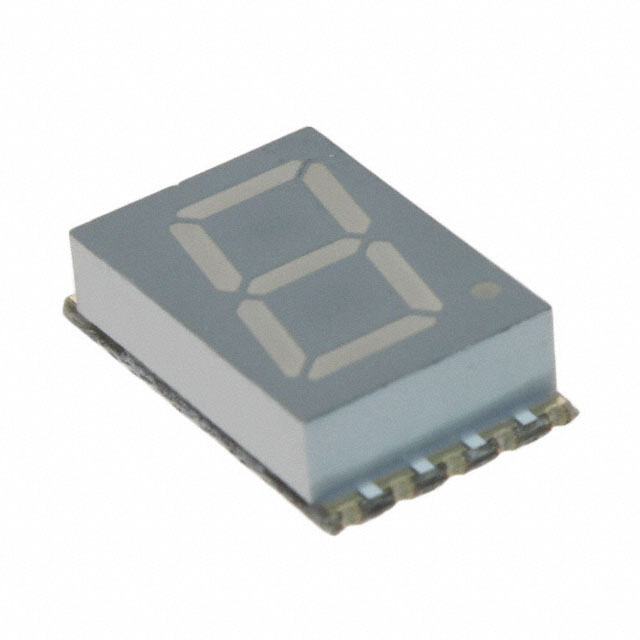

ACSA04 Series

Catalog

DISPLAY 7-SEG 0.4" SGL YLW 10SMD

Part	Package / Case	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Color	Number of Characters	Display Type	Common Pin	Millicandela Rating	Current - Test	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power Dissipation (Max)
Kingbright ACSA04-41SYKWA-F01	10-SMD No Lead	2 V	75 mw	590 nm	10.16 mm	0.4 in	Yellow	1	7-Segment	Common Anode	35 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
Kingbright ACSA04-41SGWA-F01	10-SMD No Lead	2.2 V	62.5 mW	565 nm	10.16 mm	0.4 in	Green	1	7-Segment	Common Anode	4.7 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
Kingbright ACSA04-41SURKWA-F01	10-SMD No Lead	1.95 V	75 mw	650 nm	10.16 mm	0.4 in	Red	1	7-Segment	Common Anode	27 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
Kingbright ACSA04-41PBWA/A-F01	10-SMD No Lead	3.2 V		468 nm	10.16 mm	0.4 in	Blue	1	7-Segment	Common Anode	4.7 mcd	20 mA	0.358 in	0.148 in	0.591 in	3.75 mm	9.1 mm	15 mm	120 mW

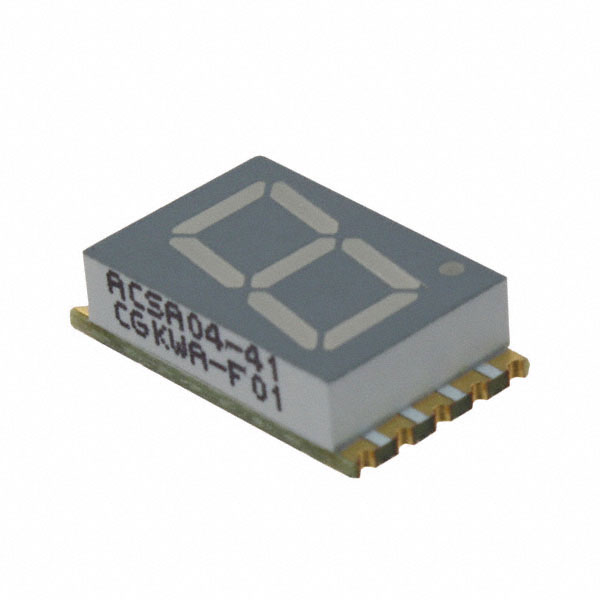

Kingbright ACSA04-41CGKWA-F01	10-SMD No Lead	2.1 V	75 mw		10.16 mm	0.4 in	Green	1	7-Segment	Common Anode	11 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
Kingbright ACSA04-41YWA-F01	10-SMD No Lead	2.5 V	75 mw	590 nm	10.16 mm	0.4 in	Yellow	1	7-Segment	Common Anode	3 mcd	20 mA	0.358 in	0.148 in	0.591 in	3.75 mm	9.1 mm	15 mm
Kingbright ACSA04-41EWA-F01	10-SMD No Lead	1.8 V		655 nm	14.22 mm	0.56 in	Red	1	7-Segment	Common Anode	26 mcd	10 mA	0.488 "	0.148 in 0.669 "		3.75 mm 17 mm	12.4 mm
Kingbright ACSA04-41SRWA-F01	10-SMD No Lead	1.85 V	75 mw	660 nm	10.16 mm	0.4 in	Red	1	7-Segment	Common Anode	14 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
Kingbright ACSA04-41SEKWA-F01	10-SMD No Lead	2.1 V	75 mw	610 nm	10.16 mm	0.4 in		1	7-Segment	Common Anode	60 mcd	20 mA	0.358 in	0.148 in	0.512 "	3.75 mm	9.1 mm	13 mm
