222CJV Series
Manufacturer: CTS Electrocomponents
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life (Cycles) | Outline Length | Outline Width | Actuator Type | Circuit | Actuator Height off PCB (Vertical) | Termination Style | Switch Function | Mounting Type | Contact Rating (Current) | Operating Force | Illumination | Features | Operating Temperature (Min) | Operating Temperature (Max) | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

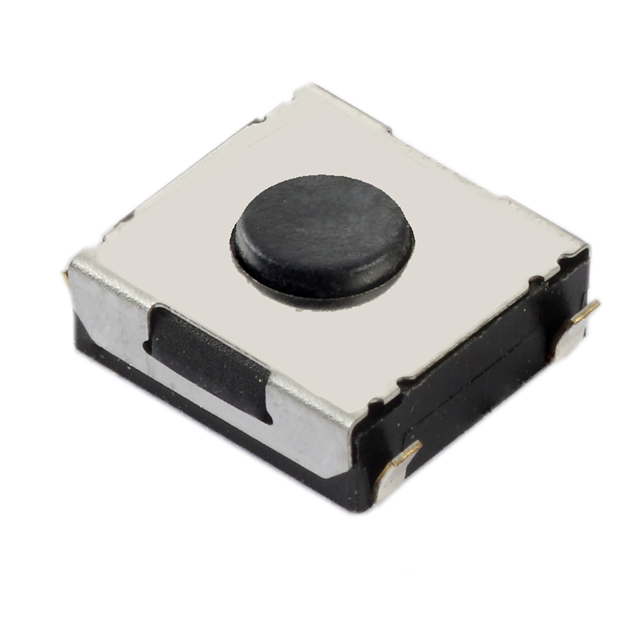

 CTS Electrocomponents | 0.25 mm | 1000000 Cycles | 6.2 mm | 6.2 mm | Standard | SPST-NO | 3.1 mm | J Lead | Off-Mom | Surface Mount | 0.05 A | 160 gf | Non-Illuminated | Tactile Feedback | -40 °C | 85 °C | Top Actuated |

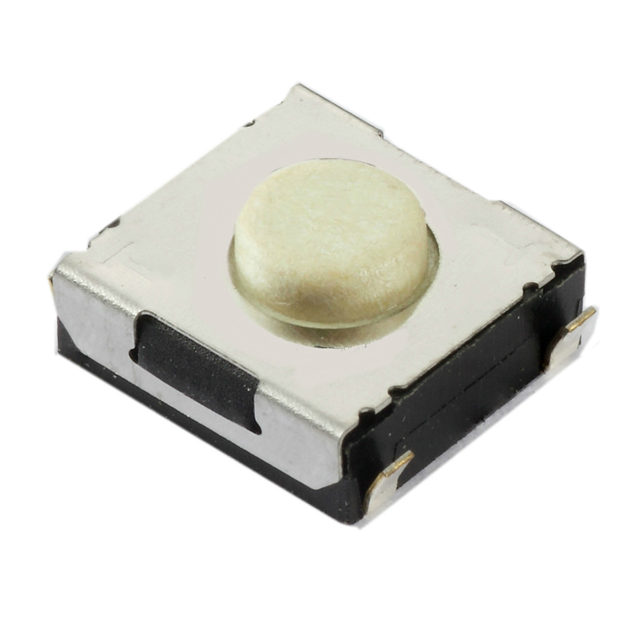

 CTS Electrocomponents | 0.25 mm | 500000 Cycles | 6.2 mm | 6.2 mm | Standard | SPST-NO | 3.1 mm | J Lead | Off-Mom | Surface Mount | 0.05 A | 260 gf | Non-Illuminated | Tactile Feedback | -40 °C | 85 °C | Top Actuated |

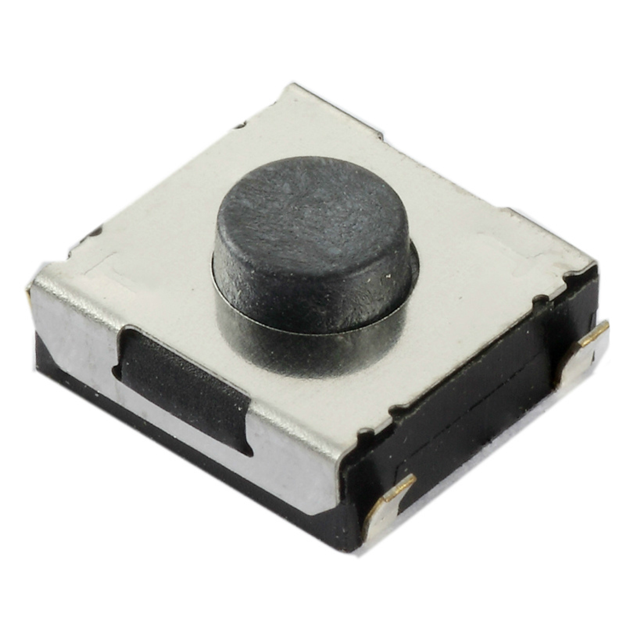

 CTS Electrocomponents | 0.25 mm | 1000000 Cycles | 6.2 mm | 6.2 mm | Standard | SPST-NO | 2.5 mm | J Lead | Off-Mom | Surface Mount | 0.05 A | 160 gf | Non-Illuminated | Tactile Feedback | -40 °C | 85 °C | Top Actuated |
