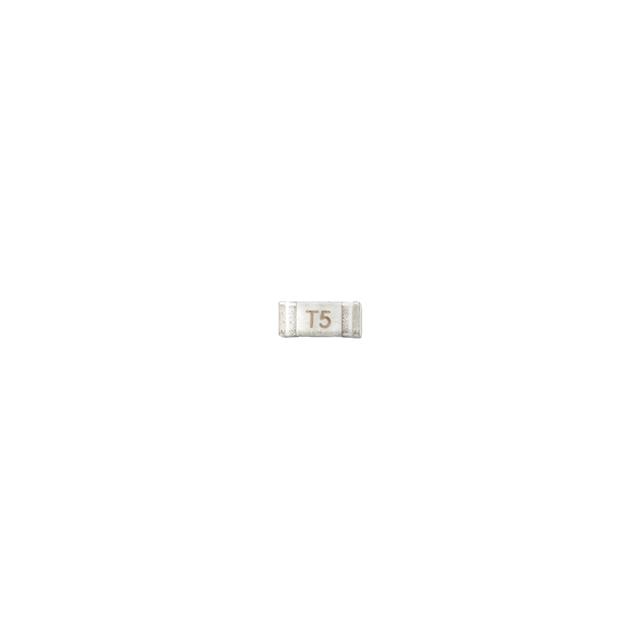

2410TD Series

Manufacturer: Eaton - Electronics Division

Catalog

FUSE, SURFACE MOUNT, 2.5 A, SLOW BLOW, 250 VAC, 60 VDC, 2410 [6125 METRIC], 2410TD SERIES

Part	DC Cold Resistance	Response Time	Breaking Capacity @ Rated Voltage	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage Rating - AC	Package / Case	Fuse Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC
Eaton - Electronics Division PK-2410TD2-5-R	0.035 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	2.5 A	60 VDC

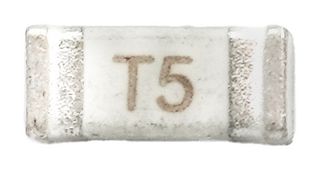

Eaton - Electronics Division PK-2410TD750-R	0.235 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	750 mA	60 VDC
Eaton - Electronics Division PK-2410TD7-R	0.0087 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	7 A	60 VDC
Eaton - Electronics Division TR1-2410TD5-R	0.0133 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	5 A	60 VDC
Eaton - Electronics Division PK-2410TD500-R	0.4025 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	0.5 A	60 VDC
Eaton - Electronics Division PK-2410TD3-5-R	19.5 mOhms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	3.5 A	60 VDC
Eaton - Electronics Division PK-2410TD1-5-R	0.063 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	1.5 A	60 VDC
Eaton - Electronics Division TR1-2410TD3-5-R	19.5 mOhms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	3.5 A	60 VDC
Eaton - Electronics Division PK-2410TD5-R	0.0133 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	5 A	60 VDC
Eaton - Electronics Division TR1-2410TD4-R	0.0185 Ohms	Slow Blow	50 A	0.107 in	6.1 mm	2.72 mm	0.107 in	2.72 mm	0.24 "	250 V	2-SMD Square End Block	Board Mount (Cartridge Style Excluded)	Surface Mount	-55 C	125 °C	4 A	60 VDC
