002650 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 10POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows	Fastening Type	Insulation Material	Contact Finish - Post	Insulation Color	Connector Type	Contact Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Material Flammability Rating	Mounting Type	Number of Positions	Style	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Molex 0026503108	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	10	Board to Board Cable	8	4.37 mm	0.172 in	0.5 "	12.7 mm

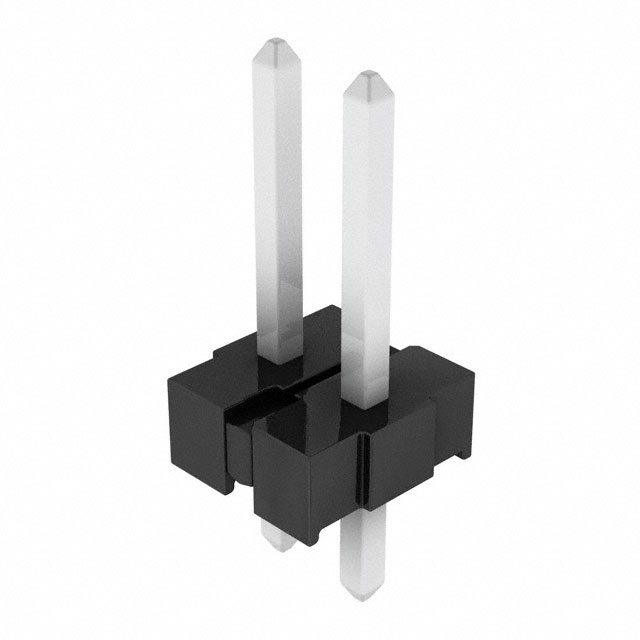

Molex 0026503029												Push-Pull			Black	Header Breakaway	Male Pin							Through Hole	2
Molex 0026503199	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Push-Pull	Polyester Glass Filled	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Unshrouded	Solder	UL94 V-0	Through Hole	19	Board to Board Cable	18	4.37 mm	0.172 in	0.128 in	3.25 mm
Molex 0026503167	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	16	Board to Board Cable	12	4.37 mm	0.172 in	0.5 "	12.7 mm
Molex 0026503189	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Push-Pull	Polyester Glass Filled	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Unshrouded	Solder	UL94 V-0	Through Hole	18	Board to Board Cable	17	4.37 mm	0.172 in	0.128 in	3.25 mm
Molex 0026503089	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Push-Pull	Polyester Glass Filled	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Unshrouded	Solder	UL94 V-0	Through Hole	8	Board to Board Cable	7	4.37 mm	0.172 in	0.128 in	3.25 mm
Molex 0026503155	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	15	Board to Board Cable	12	4.37 mm	0.172 in	0.5 "	12.7 mm
Molex 0026503071	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	7	Board to Board Cable	4	4.37 mm	0.172 in	0.5 "	12.7 mm
Molex 0026503060	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	6	Board to Board Cable	5	4.37 mm	0.172 in	0.5 "	12.7 mm
Molex 0026503140	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	60 µin	1.52 Ám	Brass	3.96 mm	0.156 in	19.05 mm	0.75 in	1	Friction Lock	Polyester	Tin	Black	Header Breakaway	Male Pin	Square	11.43 mm	0.45 in	Shrouded - 1 Wall	Solder	UL94 V-0	Through Hole	14	Board to Board Cable	13	4.37 mm	0.172 in	0.5 "	12.7 mm
