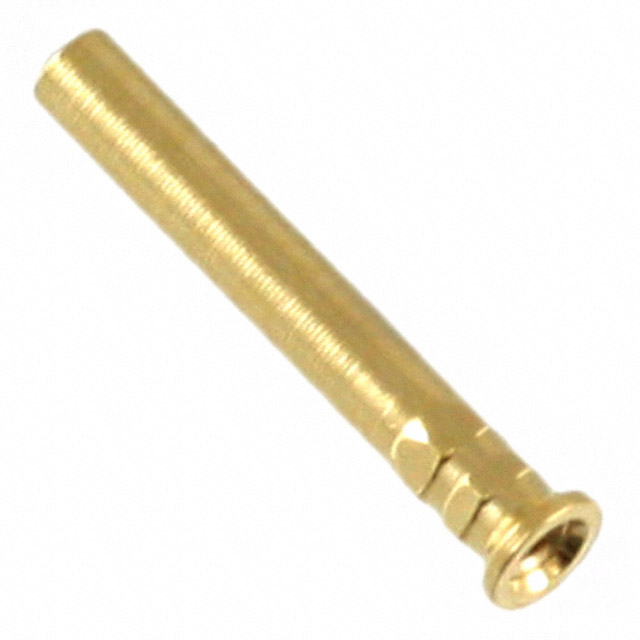

7553-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 7553-0-15-15-11-14-10-0	-55 C	125 °C	Gold	No Tail	0.041 in	1.04 mm	0.282 in	7.16 mm	0.25 Ám	10 Áin	1.4 mm	0.055 in	0.282 in	7.16 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Hex Press-Fit	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 7553-0-15-15-11-27-10-0	-55 C	125 °C	Gold	No Tail	0.041 in	1.04 mm	0.282 in	7.16 mm	0.76 Ám	30 Áin	1.4 mm	0.055 in	0.282 in	7.16 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Hex Press-Fit	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 7553-0-15-80-11-27-10-0	-55 C	125 °C	Gold	No Tail	0.041 in	1.04 mm	0.282 in	7.16 mm	0.76 Ám	30 Áin	1.4 mm	0.055 in	0.282 in	7.16 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Hex Press-Fit	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 7553-0-15-80-11-14-10-0	-55 C	125 °C	Gold	No Tail	0.041 in	1.04 mm	0.282 in	7.16 mm	0.25 Ám	10 Áin	1.4 mm	0.055 in	0.282 in	7.16 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Hex Press-Fit	Beryllium Copper	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 7553-0-15-80-11-84-10-0	-55 C	125 °C	Tin	No Tail	0.041 in	1.04 mm	0.282 in	7.16 mm	2.54 µm	100 µin	1.4 mm	0.055 in	0.282 in	7.16 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Hex Press-Fit	Beryllium Copper	0.031 in	0.79 mm
