LHA-02 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Number of Positions	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Termination	Connector Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Insulation Color	Fastening Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions Loaded	Contact Material	Contact Finish - Post	Contact Shape	Insulation Material	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]

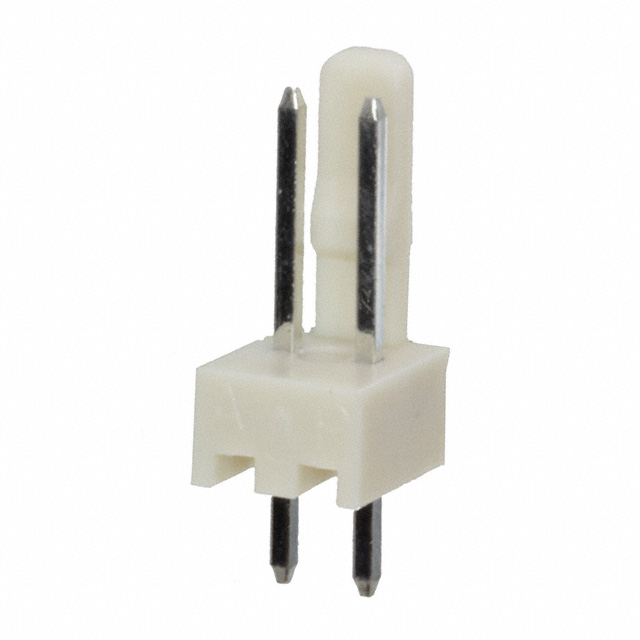

Adam Tech LHA-02-TS	3 A	85 °C	-25 °C	1	2	UL94 V-2	Male Pin	11.5 mm	0.453 in	Solder	Header	250 VAC	0.134 "	3.4 mm	Board to Cable/Wire	0.1 "	2.54 mm	14.2 mm	0.559 "	Shrouded - 1 Wall	Ivory	Friction Lock	0.291 in	7.4 mm	Through Hole	All	Brass	Tin	Square	Nylon Polyamide (PA)
Adam Tech LHA-02-TRA	3 A	105 ░C	-40 C	1	2	UL94 V-2	Male Pin			Solder	Header	250 VAC	0.134 "	3.4 mm	Board to Cable/Wire	0.1 "	2.54 mm			Shrouded - 1 Wall	White	Friction Lock		7 mm	Right Angle Through Hole	All	Brass	Tin	Square	Nylon 6/6 Polyamide (PA66)	0.276 in	0.228 "	5.8 mm

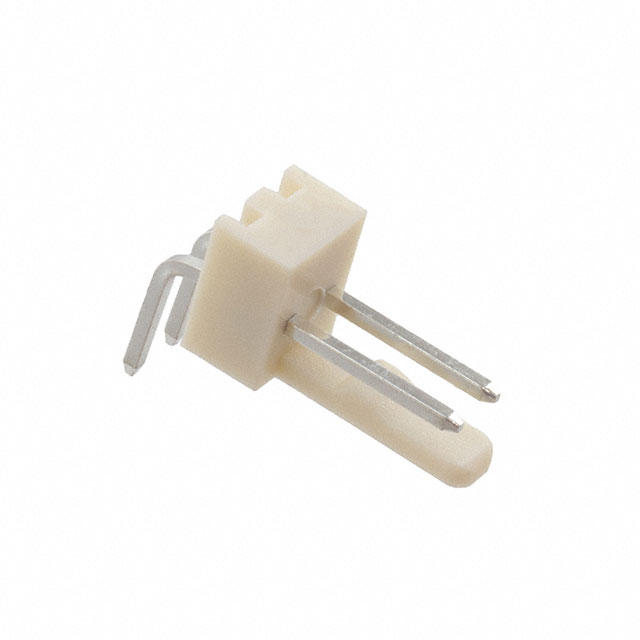

Adam Tech LHA-02-TRB	3 A	85 °C	-25 °C	1	2	UL94 V-2	Male Pin			Solder	Header	250 VAC	0.134 "	3.4 mm	Board to Cable/Wire	0.1 "	2.54 mm			Shrouded - 1 Wall	White	Friction Lock	0.293 in	7.45 mm	Right Angle Through Hole	All	Brass	Tin	Square	Nylon 6/6 Polyamide (PA66)		0.228 "	5.8 mm
