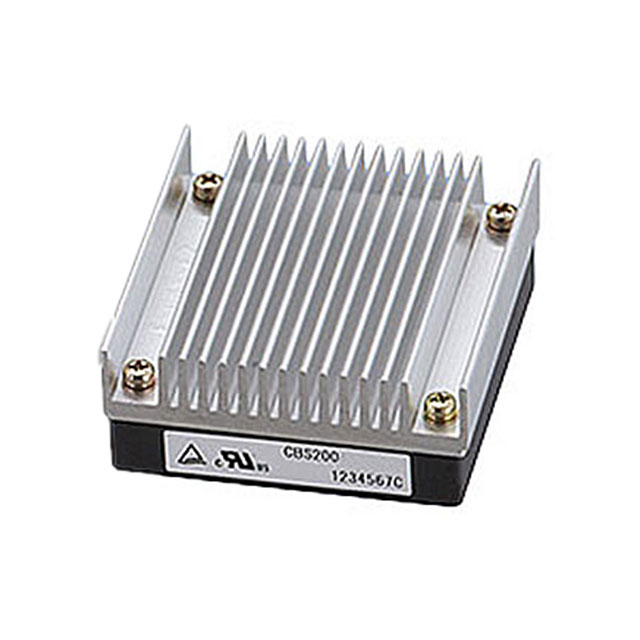

CBS200481 Series

Catalog

DC DC CONVERTER 1.8V 63W

Part	Mounting Type	Voltage - Output 1	Power (Watts)	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Isolation	Supplier Device Package	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case
Cosel USA, Inc. CBS200481R8-F5	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62.5 mm	2.31 in	58.7 mm	2.05 in	52 mm	2.46 "	Half Brick
Cosel USA, Inc. CBS200481R8-F4	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62 mm	2.34 in	59.5 mm	1.54 in	39.2 mm	2.44 "	Half Brick
Cosel USA, Inc. CBS200481R8-F6	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62 mm	2.34 in	59.5 mm	2.05 in	52 mm	2.44 "	Half Brick
Cosel USA, Inc. CBS200481R8-F1	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62.5 mm	2.31 in	58.7 mm	1.04 in	26.5 mm	2.46 "	Half Brick
Cosel USA, Inc. CBS200481R8-F3	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62.5 mm	2.31 in	58.7 mm	1.54 in	39.2 mm	2.46 "	Half Brick
Cosel USA, Inc. CBS200481R8-F2	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62 mm	2.34 in	59.5 mm	1.04 in	26.5 mm	2.44 "	Half Brick
Cosel USA, Inc. CBS200481R8-RT	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	61 mm	2.28 in	57.9 mm	0.5 in	12.7 mm	2.4 in	Half Brick
Cosel USA, Inc. CBS200481R8-RF2	Through Hole	1.8 V	63 W	Isolated Module	35 A	76 V	1	36 V	ITE (Commercial)	-40 °C	100 °C	70 %	1.5 kV	Half Brick	OCP OVP Remote On/Off	62 mm	2.34 in	59.5 mm	1.04 in	26.5 mm	2.44 "	Half Brick
