45485 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

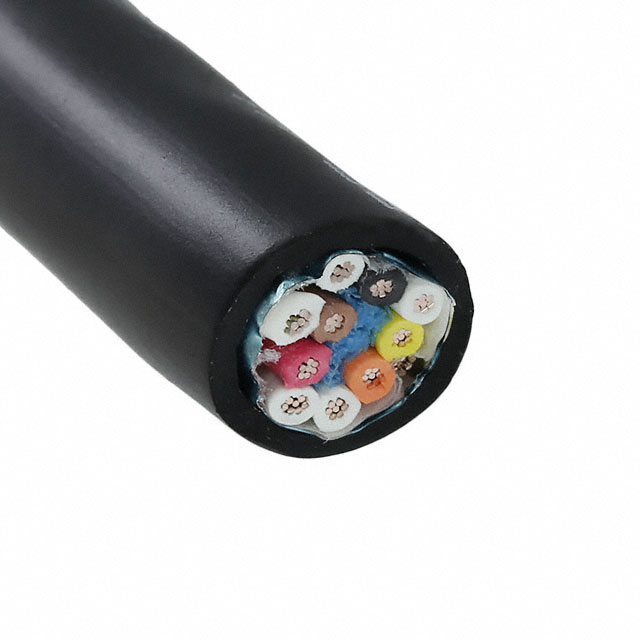

MULTI-PAIR 10COND 22AWG BLK FEET
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Spool Size | Spool Size | Ratings | Conductor Insulation | Shield Coverage | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Features | Jacket Color | Cable Type | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 9.5 mm | 0.374 in | Enter Number of Feet in Order Quantity | 1000 ft | 304.8 m | ISO 10993 | Thermoplastic Elastomer (TPE) | 100 % | Copper Tinned | -50 °C | 125 °C | Aluminum | Biological Compatibility Drain Wire Rip Cord | Black | Multi-Pair | Thermoplastic Elastomer (TPE) | Foil | 1.143 mm | 0.045 in | 7 | 30 AWG | 10 | 22 AWG | 300 V | ||
ALPHA WIRE | 9.5 mm | 0.374 in | ISO 10993 | Thermoplastic Elastomer (TPE) | 100 % | Copper Tinned | -50 °C | 125 °C | Aluminum | Biological Compatibility Drain Wire Rip Cord | Black | Multi-Pair | Thermoplastic Elastomer (TPE) | Foil | 1.143 mm | 0.045 in | 7 | 30 AWG | 10 | 22 AWG | 300 V | 30.5 m | 100 ft |
