45133 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

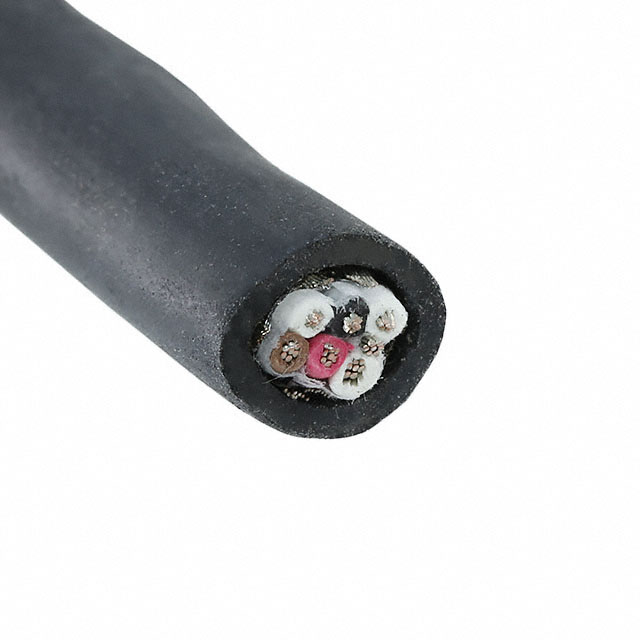

MULTI-PAIR 6COND 18AWG BLK 1000'
| Part | Wire Gauge | Length | Length | Conductor Insulation | Shield Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket Color | Shield Type | Shield Coverage | Voltage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 18 AWG | 1000 ft | 304.8 m | Thermoplastic Elastomer (TPE) | Copper Tinned Suprashield® | 6 | 0.422 in | 10.71 mm | -50 °C | 125 °C | Multi-Pair | 1.397 mm | 0.055 in | Biological Compatibility Drain Wire Rip Cord | Thermoplastic Elastomer (TPE) | 16 | 30 AWG | ISO 10993 | Black | Braid Foil | 70 % 100 % | 300 V | Copper Tinned |
