PRPC009 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 9POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Number of Positions	Contact Shape	Fastening Type	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Connector Type	Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length

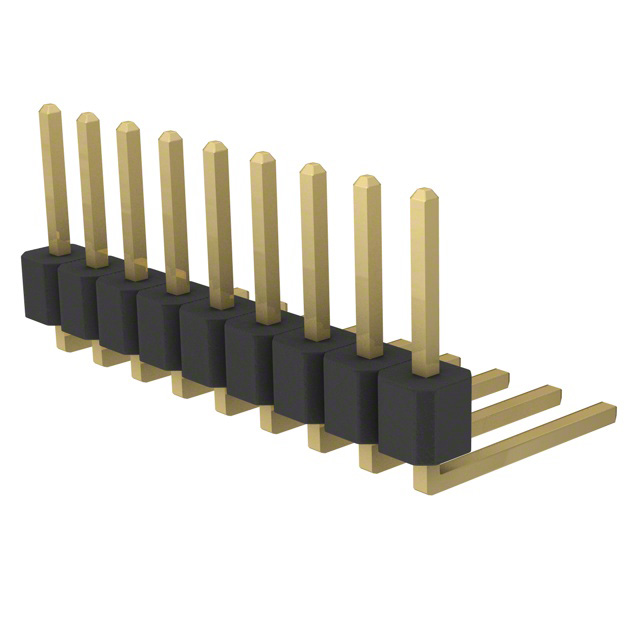

Sullins Connector Solutions PRPC009SBCN-M71RC	Flash	Flash	8.13 mm	0.32 in	Brass	Unshrouded	9	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin	1	0.1 "	2.54 mm	All	Right Angle Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm

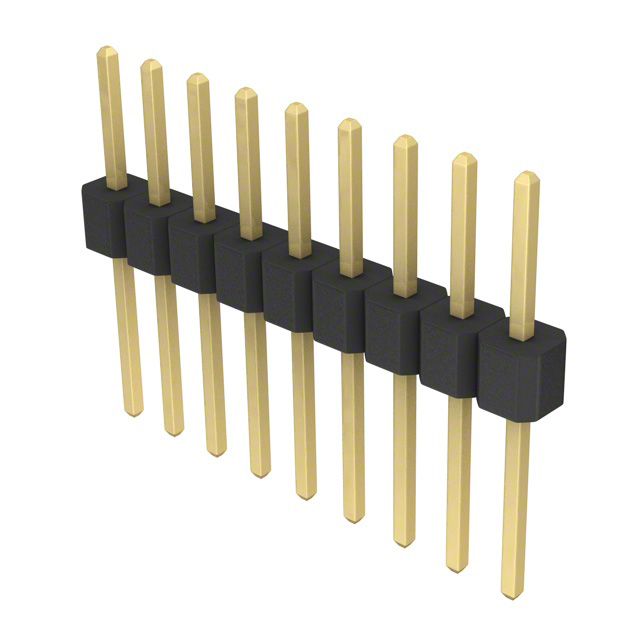

Sullins Connector Solutions PRPC009SACN-RC	Flash	Flash	8.13 mm	0.32 in	Brass	Unshrouded	9	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin	1	0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm	0.648 in	16.47 mm
Sullins Connector Solutions PRPC009SAAN-RC	Flash	Flash	3.05 mm	0.12 in	Brass	Unshrouded	9	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin	1	0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm			0.448 in	11.39 mm

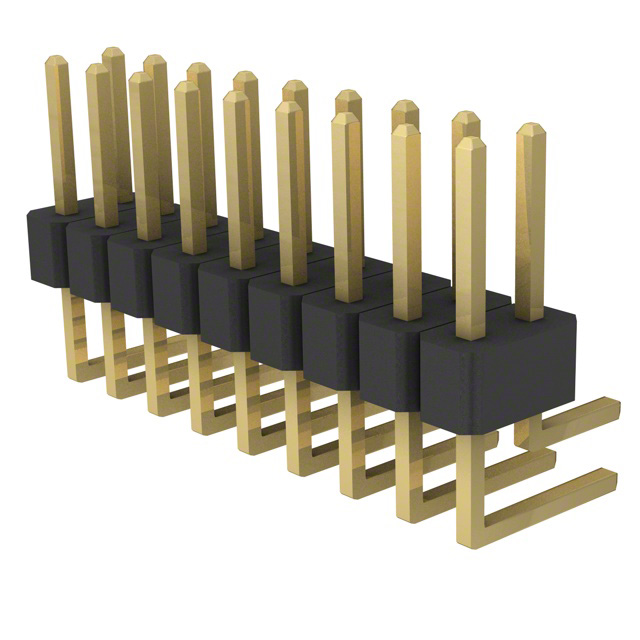

Sullins Connector Solutions PRPC009DBAN-M71RC	Flash	Flash	3.05 mm	0.12 in	Brass	Unshrouded	18	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin		0.1 "	2.54 mm	All	Right Angle Through Hole	0.197 "	5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm					0.1 in	2.54 mm	2

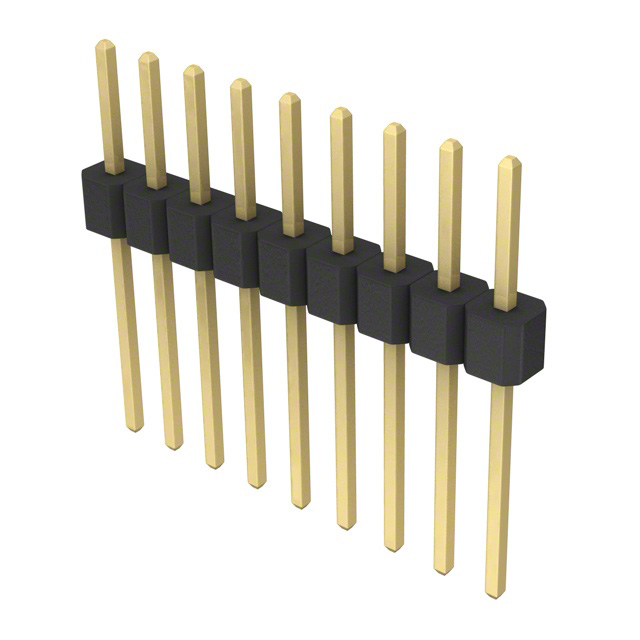

Sullins Connector Solutions PRPC009SADN-RC	Flash	Flash	10.67 mm	0.42 in	Brass	Unshrouded	9	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin	1	0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm			0.748 in	19.01 mm

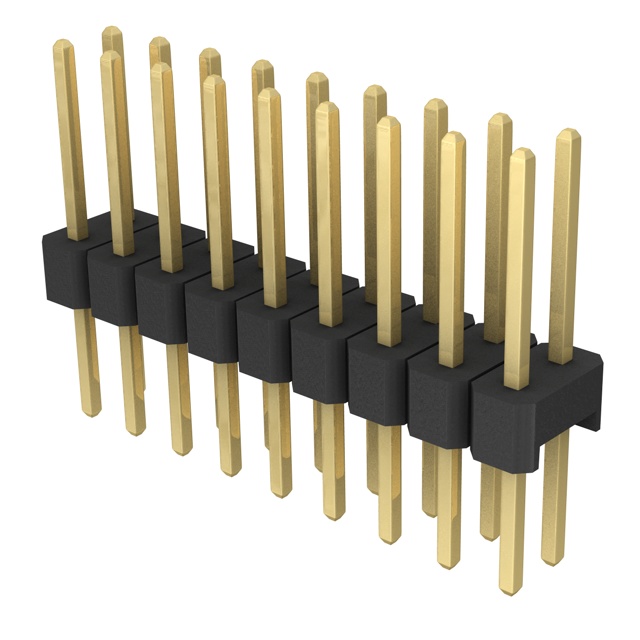

Sullins Connector Solutions PRPC009DFBN-RC	Flash	Flash	5.58 mm	0.22 in	Brass	Unshrouded	18	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin		0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.318 in	8.08 mm				0.637 in	0.1 in	2.54 mm	2	16.17 mm

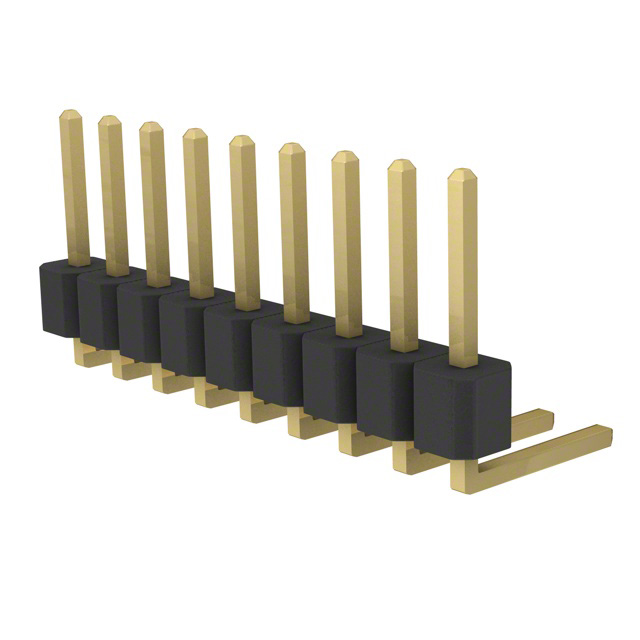

Sullins Connector Solutions PRPC009SBBN-M71RC	Flash	Flash	5.58 mm	0.22 in	Brass	Unshrouded	9	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin	1	0.1 "	2.54 mm	All	Right Angle Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm
Sullins Connector Solutions PRPC009DFAN-RC	Flash	Flash	3.05 mm	0.12 in	Brass	Unshrouded	18	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin		0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.318 in	8.08 mm	0.537 in	13.63 mm			0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC009DABN-RC	Flash	Flash	5.84 mm	0.23 "	Brass	Unshrouded	18	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin		0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm			0.558 in	14.18 mm	0.1 in	2.54 mm	2
Sullins Connector Solutions PRPC009DAAN-RC	Flash	Flash	3.05 mm	0.12 in	Brass	Unshrouded	18	Square	Push-Pull	UL94 V-0	Gold	Gold	Header Breakaway	Board to Board Cable	Solder	-40 C	105 ░C	Black	Male Pin		0.1 "	2.54 mm	All	Through Hole	0.098 "	2.5 mm	Polybutylene Terephthalate (PBT)	3 A	0.23 in	5.84 mm			0.448 in	11.39 mm	0.1 in	2.54 mm	2
