054819 Series
Manufacturer: Molex
Beta
⌘K

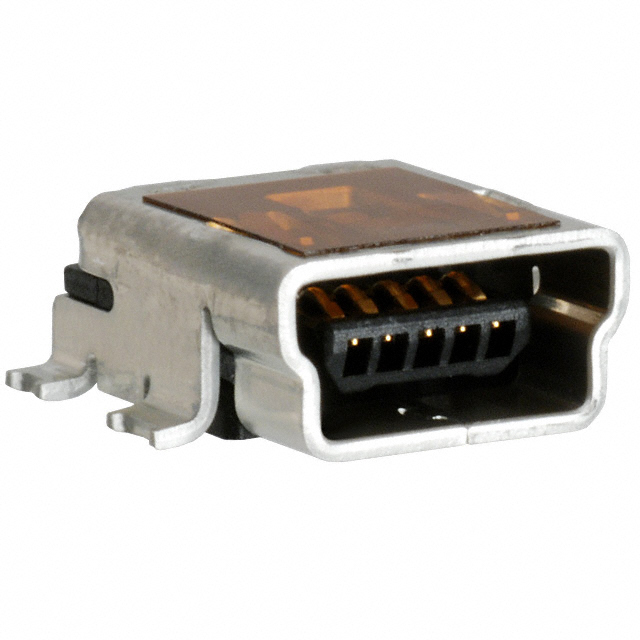

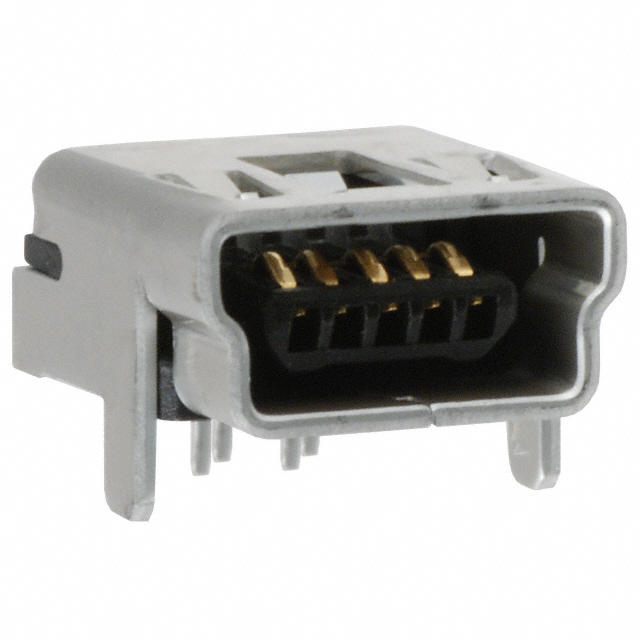

CONN RCPT USB2.0 MINI B 5P R/A
| Part | Shielding | Number of Ports | Voltage - Rated | Number of Contacts | Material Flammability Rating | Specifications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shell/Shielding Material | Contact Finish | Gender | Mounting Feature | Mating Cycles | Connector Type | Termination | Insulation Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Shielded | 1 | 30 V | 5 | UL94 V-0 | USB 2.0 OTG | Through Hole Right Angle | 85 °C | -20 C | Copper Alloy | Gold | Receptacle | Horizontal | 5000 | USB - mini B | Solder | Black | |
 Molex | Shielded | 1 | 30 V | 5 | UL94 V-0 | USB 2.0 OTG | Surface Mount Right Angle | Copper Alloy | Gold | Receptacle | Horizontal | USB - mini B | Solder | Black | Solder Retention |
