1.10.010 Series
Manufacturer: RAFI USA
Beta
⌘K

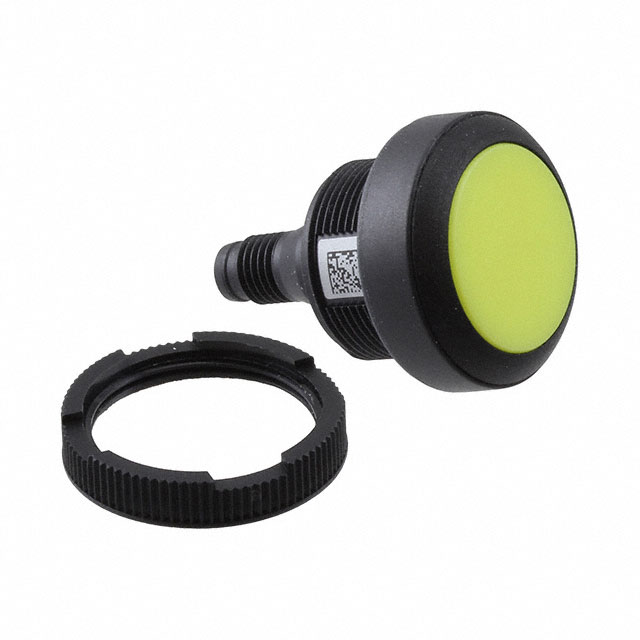

SWITCH PUSH SPST-NO 100MA 35V
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Panel Cutout Diameter | Panel Cutout Shape | Current Rating | Switch Function | Type | Ingress Protection Description | Ingress Protection IP Rating | Termination Style | Circuit | Actuator Type | Color | Illumination Type | Actuator Marking | Illumination Voltage (Nominal) | Voltage Rating - DC | Color - Actuator/Cap | Electrical Life (Cycles) | Mechanical Life (Cycles) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | 70 °C | -25 °C | Front Panel Mount | 22.3 mm | Circular | 100 mA | Off-Mom | Illuminated Standard | Dust Tight High Temp Water Jets Waterproof | IP69K | Connector | SPST-NO | Button Flush Round | Yellow | LED | No Marking | 24 V | 35 V | Yellow | ||
RAFI USA | 70 °C | -25 °C | Front Panel Mount | 22.3 mm | Circular | 100 mA | Off-Mom | Illuminated Standard | Dust Tight High Temp Water Jets Waterproof | IP69K | Connector | SPST-NO | Button Flush Round | Yellow | LED | No Marking | 24 V | 35 V | Yellow | 500000 | 500000 Cycles |
