MAX77801 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

5.5V INPUT, 2A, HIGH-EFFICIENCY BUCK-BOOST CONVERTER

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Output Configuration	Topology	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Current - Output	Function	Frequency - Switching	Voltage - Input (Max) [Max]	Number of Outputs	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Main Purpose	Voltage - Output [Min]	Voltage - Output [Max]
Analog Devices Inc./Maxim Integrated MAX77801EWP+T	Programmable	85 C	-40 ¯C	Surface Mount	20-WFBGA WLBGA	2.13	1.83	20-WLP	Positive	Buck-Boost	2.3 V	4.19 V	2.6 V	2 A	Step-Up/Step-Down	2.5 MHz	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77801ETP+	Programmable	85 C	-40 ¯C	Surface Mount	20-WFQFN Exposed Pad			20-TQFN (4x4)	Positive	Buck-Boost	2.3 V		2.6 V	2 A	Step-Up/Step-Down	2.5 MHz	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77801HEWP+T	Programmable	125 °C	-40 C	Surface Mount	20-WFBGA WLBGA	2.13	1.83	20-WLP	Positive	Buck-Boost	2.3 V	4.18 V	2.6 V	2 A	Step-Up/Step-Down	2.5 MHz	5.5 V	1

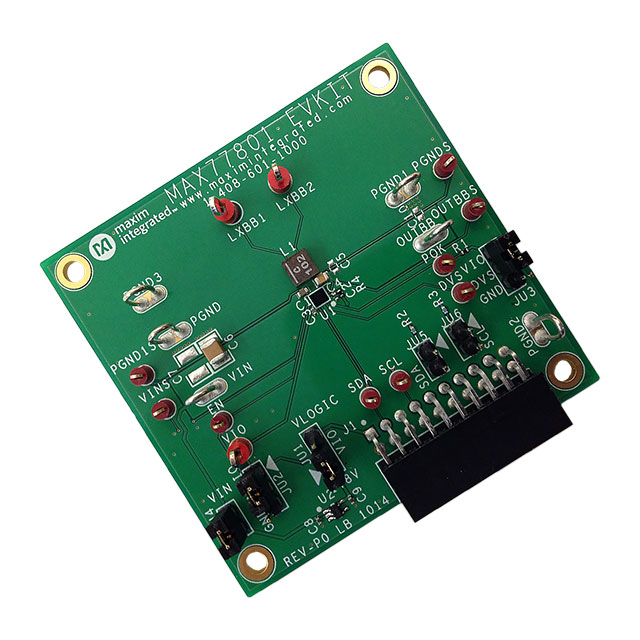

Analog Devices Inc./Maxim Integrated MAX77801EVKIT#														2 A		2.5 MHz			1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	MAX77801	Board(s)	5.5 V	2.3 V	Buck-Boost	DC/DC Step Up or Down	2.6 V	4.1875 V
Analog Devices Inc./Maxim Integrated MAX77801ETP+T	Programmable	85 C	-40 ¯C	Surface Mount	20-WFQFN Exposed Pad			20-TQFN (4x4)	Positive	Buck-Boost	2.3 V	4.18 V	2.6 V	2 A	Step-Up/Step-Down	2.5 MHz	5.5 V	1
