29500 Series

Catalog

CABLE 4COND 16AWG BLK SHLD 100'

Part	Shield Coverage	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Cable Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Conductor Insulation	Jacket Color	Shield Type	Usage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]

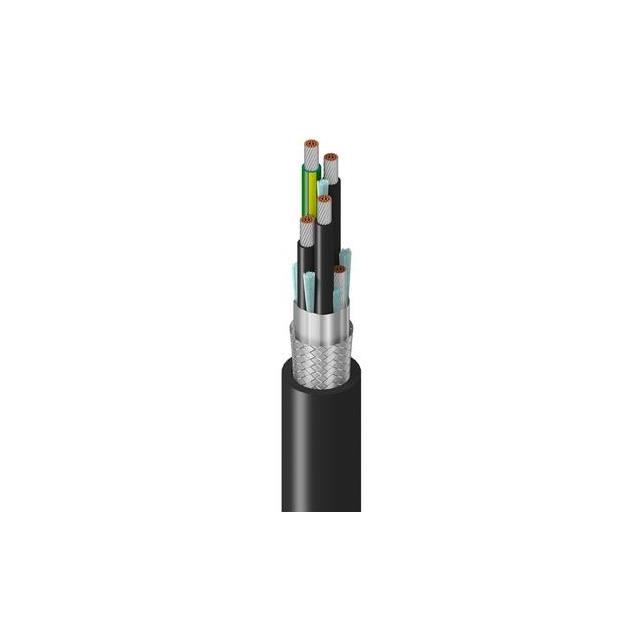

Belden Inc. 29500 010100	85 % 100 %	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	1.854 mm	0.073 in	16 AWG	Multi-Conductor	100 ft	30.5 m	30 AWG	26	4	Drain Wire Oil Resistant UV Resistant	90 °C	-40 C	Polyolefin	PO	Black	Braid Foil	Motor Supply Variable Frequency Drive (VFD)	Copper Tinned	13.56 mm	0.534 "
